Part Number: 778445-5002S
Requires EGR Adapter – PN: 795496-0001
Applications:
-
2003.5–2006 Volkswagen Beetle TDI
-
2003.5–2006 Volkswagen Golf TDI
-
2003.5–2005 Volkswagen Jetta TDI
Product Overview

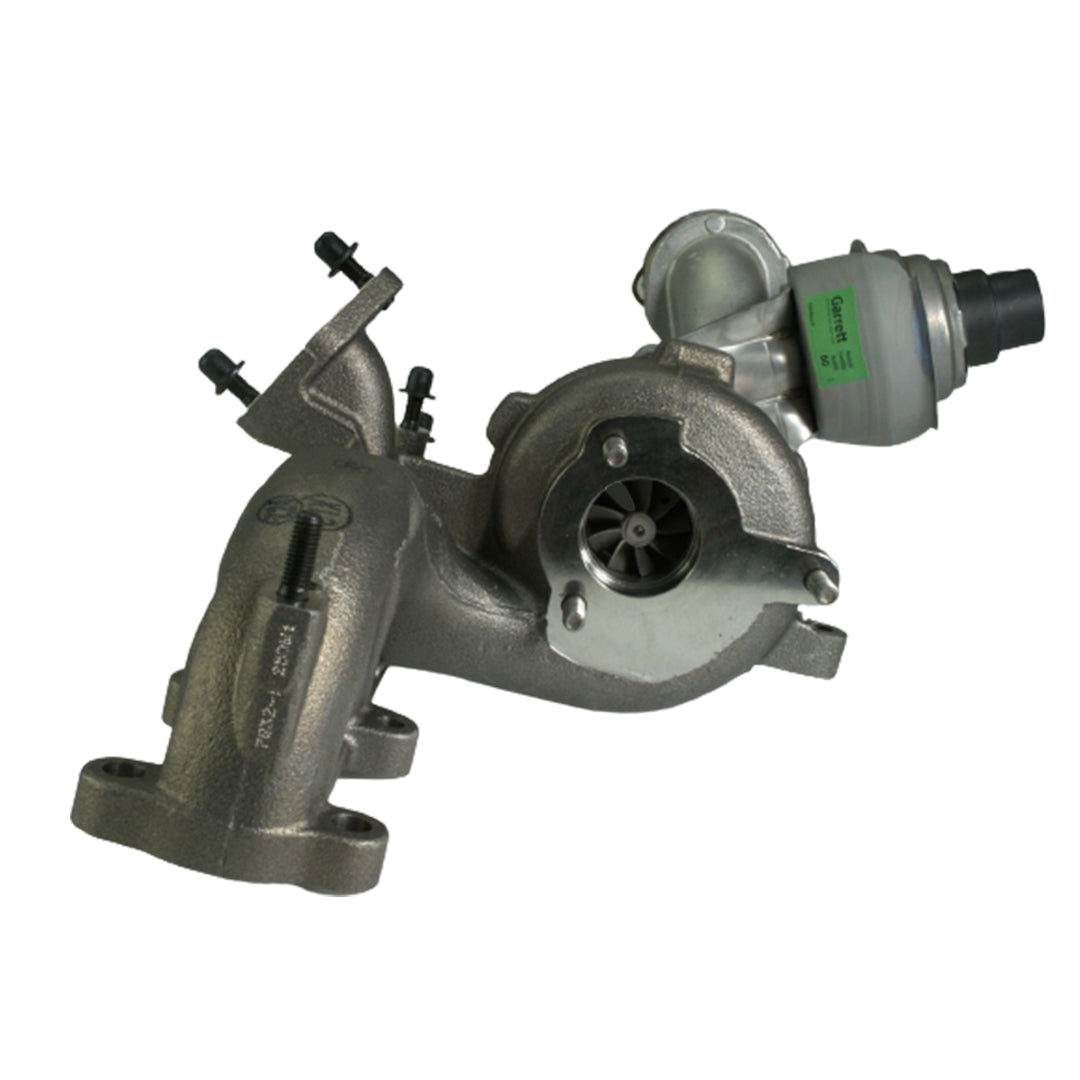

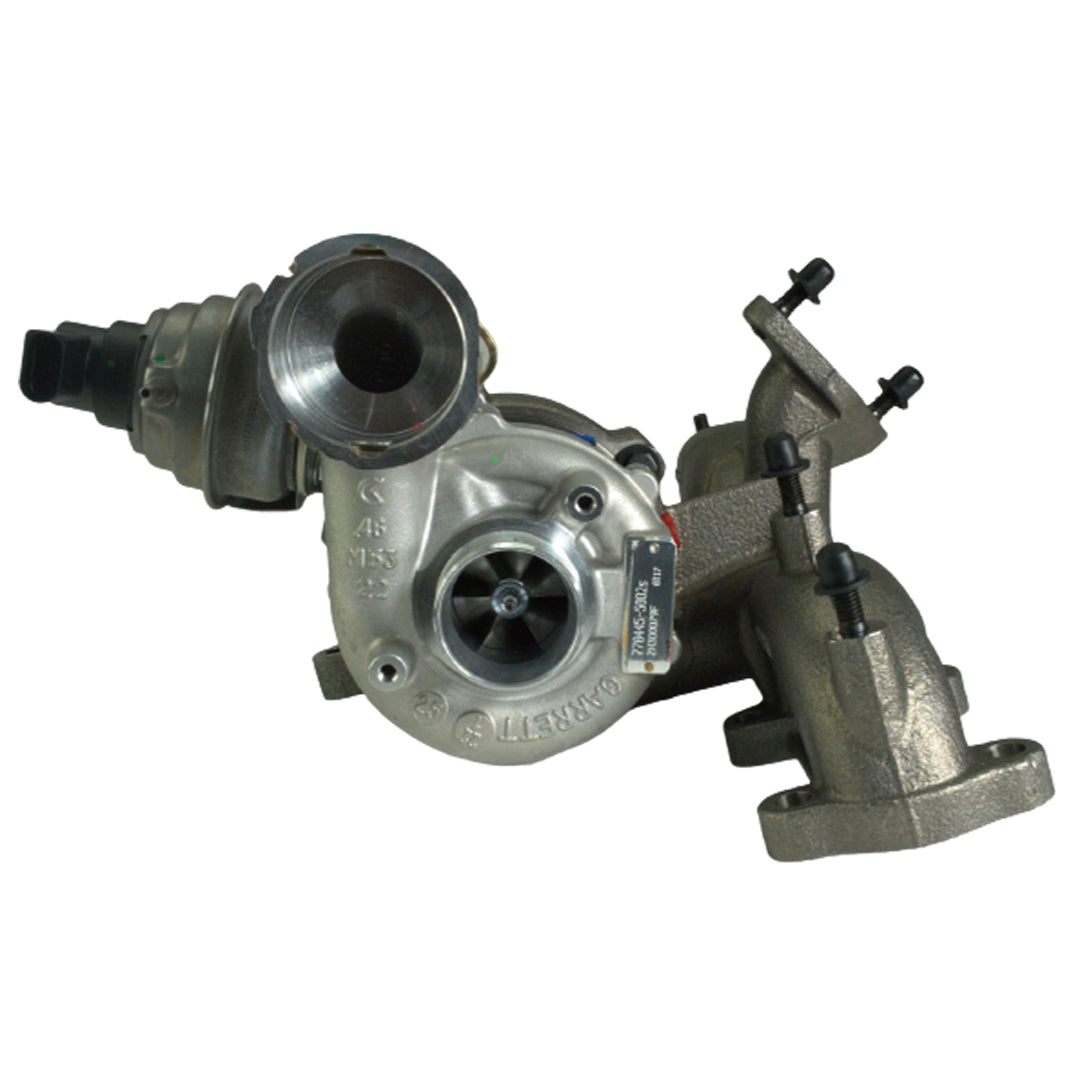

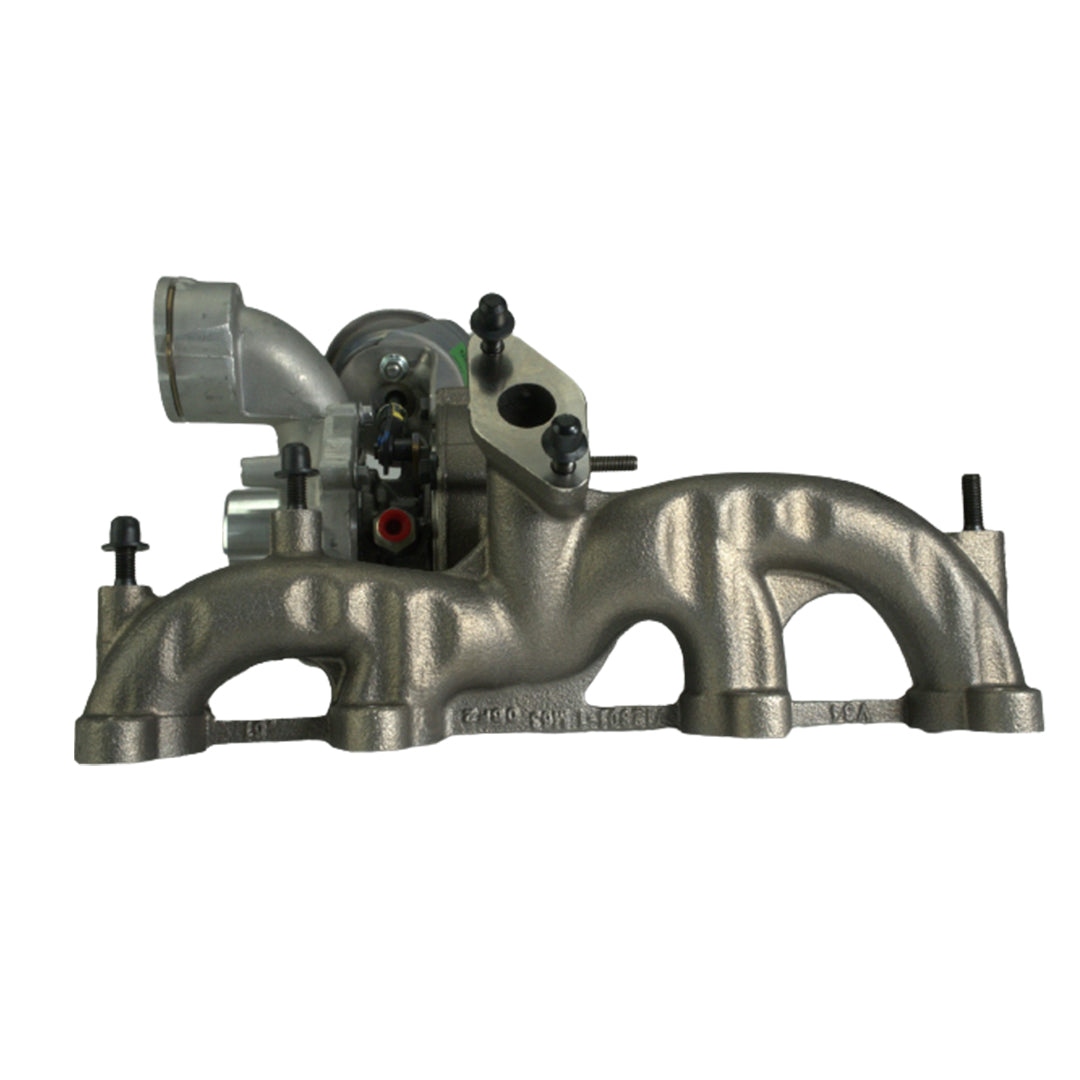

Upgrade your Volkswagen 1.9L BEW PD engine with the Garrett® GT1749VB Stage I Turbocharger, the first true performance replacement turbo available for the BEW TDI platform. Designed as a direct bolt-on upgrade, this turbo combines modern efficiency, OEM reliability, and Garrett’s industry-leading smart actuator technology for precise boost control and seamless ECU communication.
This turbo is ideal for enthusiasts looking to restore lost performance or take their TDI to the next level of power and reliability. It delivers improved airflow, reduced exhaust gas temperatures, and increased power potential—up to 175 HP with proper tuning and supporting modifications.*
Key Features
-
Smart Actuator with Position Sensor: Communicates directly with the ECU for accurate boost control and improved drivability.
-
Garrett® Patented Variable Nozzle Turbine (VNT™) Design: Enhances efficiency, throttle response, and boost delivery across the RPM range.
-
GT Wheel Aerodynamics: Increases compressor flow for better mid-range and top-end performance.
-
Direct Bolt-On Fitment: Compatible with factory hardware and designed for easy installation.
-
Enhanced Reliability: Lower exhaust gas temperatures help extend turbo and engine life.
Specifications
-
Turbo Model: GT1749VB
-
OE Replacement for Volkswagen Part Numbers: 038 253 019 S and 038 253 014 E
-
Replaces Factory Turbo Model: KP39 (3K)
-
Horsepower Capability: Up to 175 HP*
*Performance results depend on vehicle condition, supporting modifications, and professional tuning.
EGR Adapter Required (PN: 795496-0001).
Optimize your VW TDI’s performance with genuine Garrett technology — engineered for durability, precision, and power.
