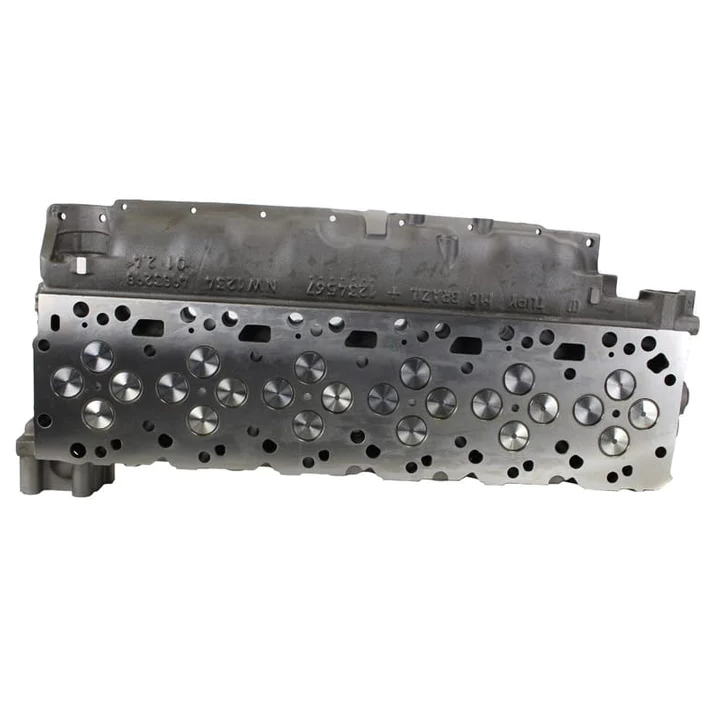

5.9 Cummins 24 Valve Performance Head - Industrial Injection

Cummins 6.7 Stage 3 Ported & Polished Cylinder Head w/ Fire Ring Grooves - Industrial Injection

Industrial Injection 5.9 Cummins Stage 1 Ported & Polished Cylinder Head (1998.5-2002)

Name: Industrial Injection 5.9 Cummins Stage 1 Ported & Polished Cylinder Head (1998.5-2002)
Brand: Industrial Injection
SKU: PDM-24VSTH
Price: 5026.95 USD
Availability: InStock

Industrial Injection

SKU: PDM-24VSTH

Price

$5,026⁹⁵

$0⁰⁰ $5,026⁹⁵

Save $-5,026.95

/

Premium Freight Program: $300 flat-rate freight each way via Old Dominion. Core support available.

Premium Freight Coordination

Qualifying stocked Cummins Cylinder Heads ship through our coordinated flat-rate freight program with Old Dominion.

✓ $300 flat-rate freight each way

✓ Handled exclusively through Old Dominion

✓ Core return support available

✓ Questions? Call our engine team

Premium Diesel Components, Delivered with Confidence.

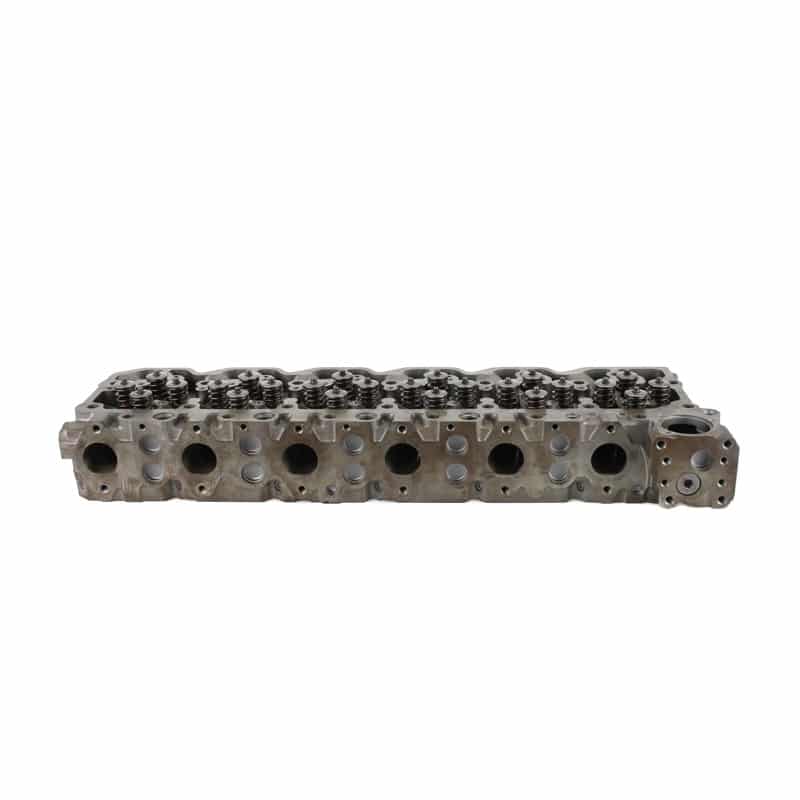

Industrial Injection 5.9 Cummins Stage 1 Ported & Polished Cylinder Head with Fire Ring Grooves (1998.5-2002)

Upgrade your 5.9L Cummins with the Industrial Injection Stage 1 Ported & Polished Cylinder Head, engineered for daily drivers, towing applications, and performance enthusiasts. This fully assembled cylinder head is CNC ported, fire ring ready, and designed to improve airflow, reliability, and overall engine performance.

Built using advanced 5-axis CNC porting technology, every intake and exhaust port is precision-machined and hand-finished to maximize airflow and maintain consistent cylinder-to-cylinder performance. The result is improved horsepower, torque, throttle response, and reduced cylinder pressures.

Each cylinder head comes complete with premium stainless steel nitride-coated valves, high-strength alloy valve guides, oversized high-temperature valve seats, and 95lb performance valve springs manufactured in the USA for increased durability.

To improve long-term reliability, the head features drilled and tapped steel coolant freeze plugs that eliminate the common failure points found in factory press-in plugs. Radius-cut fire ring grooves are machined into the head to work with a fire ring head gasket, helping reduce the risk of head gasket failure in high-performance applications.

Features:

Fully CNC ported and hand-blended cylinder head
Radius-cut fire ring grooves for improved head gasket sealing
Performance stainless steel nitride-coated valves
High-strength hardened alloy valve guides
Premium oversized high-temperature valve seats
Drilled and tapped steel coolant freeze plugs
95lb USA-made performance valve springs
Complete and ready to install

Benefits:

Improved airflow and engine efficiency
Increased horsepower and torque potential
Enhanced durability for towing and performance use
Better valve train stability at higher RPM
Reduced risk of dropped valve seats and freeze plug failures
Designed for long-lasting reliability and daily drivability

Note: Fire Ring Head Gasket sold separately.

Shipping information

Free economy ground shipping on most orders over $200. This includes lower 48 United States only. Excludes products that must ship freight.

Core Return Info

Read Carefully!

When you purchase a product from our website that has a core requirement, you have two options:

1. You choose to pay the core charge and we will ship the product right away, then once we receive the cores you will be refunded the core charge if your cores pass our inspection qualifications. This is the preferred choice and has the least delays.

2. You choose to send in your cores before we ship the product that was purchased. This choice has the risk of delayed shipment of your purchased product and our inventory is not guaranteed by the time we receive your cores. You will need to follow all of the instructions below as quickly as possible so that you can get your purchased product and we can receive the cores. When you choose this option you acknowledge that by the time we receive your cores, our inventory could have change and there could be a delay in your shipment.

Please return all cores to:

Industrial Injection Core Returns
2858 South 300 West
Salt Lake City, Utah 84115

INCLUDE RA# THAT WAS ISSUED AT TIME OF PURCHASE! If RA # is lost, please call Customer Service at (800) 955-0476. Have your original invoice at time of phone call to give all appropriate information for return.

Core return freight is the responsibility of the customer

FULL CREDIT WILL BE GIVEN WHEN:

In order to receive full core credit, your core(s) must be returned within 90 days from receipt of order. It must be as is “off the engine.” Full core credit will be given if core meets acceptance criteria. Cores that are damaged during shipment to Industrial Injection are the responsibility of the customer and their shipping company.

½ CORE CHARGE CREDIT WILL BE GIVEN WHEN:

Slightly damaged housing or camshaft
Missing parts such as FCA

No Core Credit issued when:

Core is seized or hydraulic head is cracked
Excessive damage ( Heavy use of Bio-diesel and rust are common causes for unacceptable core)
Core is fire damaged
Core is returned after 90 days/3months

Please do the following when returning a core:

Make sure you have removed all fittings from your old unit
Drain all fuel and oil from unit
Package cores so that fuel and oil does not escape from the package

NOTE: packages that have fuel or oil residue on the outside of the box during shipping will not be delivered by UPS or the postal service which will cause delays.

Please re-use boxes and bags that parts were shipped in originally. These boxes are UPS approved to reduce damage while being handled in freight.
All shipping charges are the responsibility of the customer
Please write on the box “Core Return” and have RA # clearly written on the outside of box
Include copy of original invoice and RGA inside box

PLEASE RETAIN RA#, INVOICE # AND TRACKING NUMBER UNTIL CREDIT IS RECEIVED BY YOU. We do not research by customer name, only invoice # or RA #.
