2003-2004 5.9 Cummins Piston Kits - Industrial Injection

2003-2004 5.9 Cummins Piston Kits

Industrial Injection SKU: PDM-3672
Piston Size
Price
Regular price $1,40695
Regular price $000 Sale price $1,40695
Save $-1,406.95
/
  • Free Ground shipping (Over $200*)
  • Top-of-the-line Customer Service
  • Secure payments
Shipping calculated at checkout.

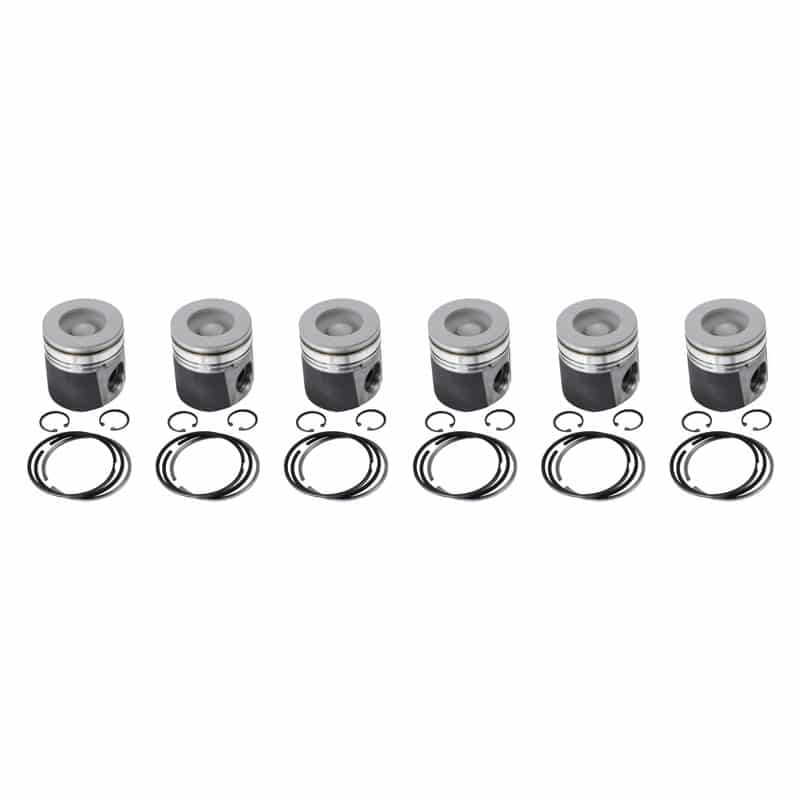

2003-2004 5.9L Cummins Pistons

Stock Piston Features:

  • Drop In Replacement
  • Complete W/ Rings, Wrist Pins And Clips
  • Available in Std, .020, .040 Sizes

Coated & Chamfered Piston Kit Features:

  • Drop In Replacement
  • Complete W/ Rings, Wrist Pins And Clips
  • Available in Std, .020, .040 Sizes
  • .010 Machined Off The Top and Chamfered
  • Thermal Barrier Coating For Piston Tops
  • Ceramic Piston Skirt Coating

Fly Cut, Coated & Chamfered Piston Kit Features:

  • Drop In Replacement
  • Complete W/ Rings, Wrist Pins And Clips
  • Available in Std, .020, .040 Sizes
  • Fly Cut with .100 Valve Reliefs
  • Chamfered tops
  • Thermal Barrier Coating For Piston Tops
  • Ceramic Piston Skirt Coating

 Fly Cut (valve relief): .100

Fly cutting is a machining Process we use to add Piston to valve Clearance, when using High lift camshaft.

Chamfering:

Our Coated Cummins pistons are Chamfered (The top is tapered to help avoid swelling and Scuffing the Cylinder Wall.)

Skirt and Top Coating:

PDM’s Ceramic Piston Skirt Coating, is designed to be used, on any rigid or semi rigid surface experiencing sliding, rotating or oscillating friction. This coating will carry loads in excess of 350,000 PSI as well as lubricate at temperatures in excess of 1600f. This coating combines the durability of a ceramic resin with the lubricity of the ceramic lubricant. It is used in applications where high temperatures, high loads and high speeds are experienced. When higher temperatures, than most other types of coatings can provide protection at, are experienced, this coating is fully capable of carrying the load. Gray in color it acquires a glass like finish in use. Cured film thickness of “.001” or less requires no change is piston clearance.

PDM’s Thermal Barrier Coating for piston tops is designed for Performance engines running; Nitrous oxide, supercharged or Turbocharged. It creates a hard surface specifically designed for engines running High volumes of fuel and/or high compression ratios. The thermal barrier coating. Reduces part temperature. Keeps heat in combustion chamber longer through the power stroke. Increase torque, H.P. and improved combustion chamber efficiency.

*Sold in a set of 6
Shipping information

Free economy ground shipping on most orders over $200. This includes lower 48 United States only. Excludes products that must ship freight.

Core Return Info

Read Carefully!

When you purchase a product from our website that has a core requirement, you have two options:

1. You choose to pay the core charge and we will ship the product right away, then once we receive the cores you will be refunded the core charge if your cores pass our inspection qualifications. This is the preferred choice and has the least delays.

2. You choose to send in your cores before we ship the product that was purchased. This choice has the risk of delayed shipment of your purchased product and our inventory is not guaranteed by the time we receive your cores. You will need to follow all of the instructions below as quickly as possible so that you can get your purchased product and we can receive the cores. When you choose this option you acknowledge that by the time we receive your cores, our inventory could have change and there could be a delay in your shipment.



Please return all cores to:



Industrial Injection Core Returns
2858 South 300 West
Salt Lake City, Utah 84115

INCLUDE RA# THAT WAS ISSUED AT TIME OF PURCHASE! If RA # is lost, please call Customer Service at (800) 955-0476. Have your original invoice at time of phone call to give all appropriate information for return.

Core return freight is the responsibility of the customer

FULL CREDIT WILL BE GIVEN WHEN:

In order to receive full core credit, your core(s) must be returned within 90 days from receipt of order. It must be as is “off the engine.” Full core credit will be given if core meets acceptance criteria. Cores that are damaged during shipment to Industrial Injection are the responsibility of the customer and their shipping company.

½ CORE CHARGE CREDIT WILL BE GIVEN WHEN:

  • Slightly damaged housing or camshaft
  • Missing parts such as FCA

No Core Credit issued when:

  • Core is seized or hydraulic head is cracked
  • Excessive damage ( Heavy use of Bio-diesel and rust are common causes for unacceptable core)
  • Core is fire damaged
  • Core is returned after 90 days/3months

Please do the following when returning a core:

  • Make sure you have removed all fittings from your old unit
  • Drain all fuel and oil from unit
  • Package cores so that fuel and oil does not escape from the package

NOTE: packages that have fuel or oil residue on the outside of the box during shipping will not be delivered by UPS or the postal service which will cause delays.

  • Please re-use boxes and bags that parts were shipped in originally. These boxes are UPS approved to reduce damage while being handled in freight.
  • All shipping charges are the responsibility of the customer
  • Please write on the box “Core Return” and have RA # clearly written on the outside of box
  • Include copy of original invoice and RGA inside box

PLEASE RETAIN RA#, INVOICE # AND TRACKING NUMBER UNTIL CREDIT IS RECEIVED BY YOU. We do not research by customer name, only invoice # or RA #.
