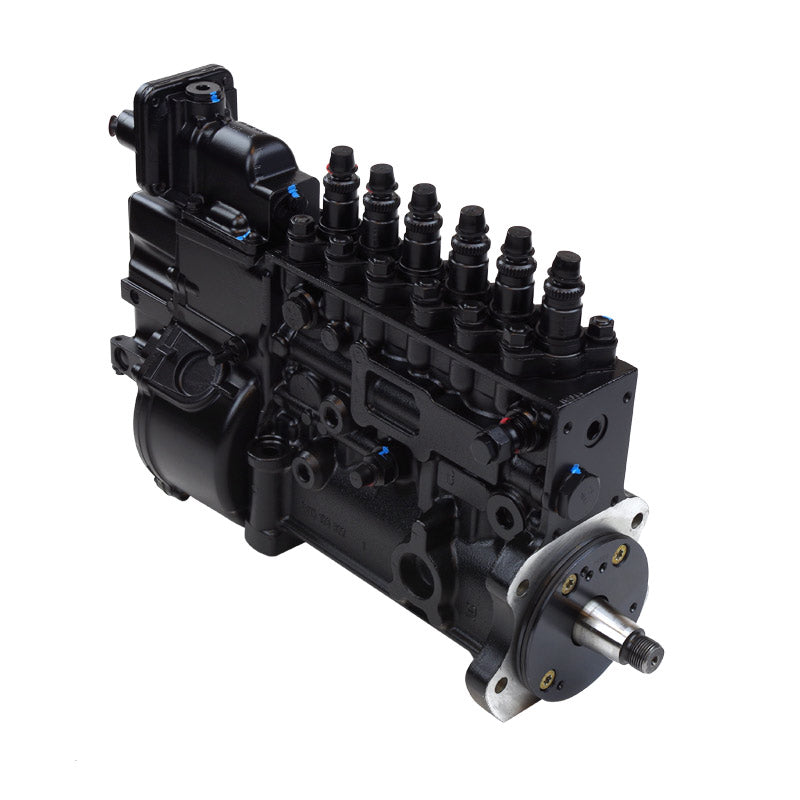

Industrial Injection 5.9L 12v Cummins P7100 Dragon Flow 13MM Injection Pump (800-1,200 HP)
Fits: 1994-1998 Dodge Ram 5.9L Cummins
Take your 12-Valve Cummins performance build to the next level with the Industrial Injection Dragon Flow 13MM P7100 Injection Pump. Designed for serious racing and high-horsepower applications, this competition-only fuel pump delivers massive fuel volume, increased torque, and the reliability Industrial Injection is known for.
Built with precision Bosch 13mm plungers and fully rebuilt and calibrated in-house, the Dragon Flow P7100 is engineered to support 800-1,200 horsepower builds while maintaining drivability features like modified aneroid tuning for valet or low-boost driving conditions.
Whether you're building a drag truck, sled puller, dyno competitor, or dedicated race vehicle, this high-flow P-pump provides the fueling capability needed to push your Cummins to elite performance levels.
Key Features & Benefits
-
Supports 800-1,200 horsepower performance builds
-
Built with 13mm plungers for maximum fuel delivery
-
Quick Rate Cam Installed
-
Option of 191 or laser cut delivery valves
-
Option of billet .093 or .120 delivery valve holders
-
Delivers up to 750cc at 2500 RPM and 800cc at 3000 RPM
-
5000 RPM Governor Spring Kit
-
Modified AFC housing for max fuel delivery
-
Rack Plug Installed
-
Custom Fuel Plate Installed
-
Pin Timed to 28 Degrees unless otherwise requested
-
Fully remanufactured, rebuilt, and calibrated by Industrial Injection technicians
-
Ideal for drag racing, sled pulling, and competition diesel applications
-
Optional Ag-Governor upgrade available (+$500)
-
1-Year Limited Warranty
NOTE: .093 or .120 fuel lines required & must match delivery valve holder size, 6x.018 minimum injector size
Important Core Information (Obsolete Part Notice)
This injection pump is classified as an obsolete performance component and must be built using your matching P7100 core.
-
A Return Authorization (RA) number is required before sending your core
-
The core must match the requested part number to meet performance specifications
-
Non-matching cores may not be eligible for rebuild
-
Your pump will be rebuilt and returned to your specifications
Competition Use Only Disclaimer
All Industrial Injection performance products are intended for dedicated competition vehicles only.
These products are not legal for on-road, off-road, or dual-use applications. Compliance with all state and federal emissions regulations is the responsibility of the purchaser.
Why Choose Industrial Injection?
For over 40 years, Industrial Injection has been a leader in diesel fuel system innovation, delivering high-performance pumps trusted by competitors across drag racing, sled pulling, and dyno events worldwide.
