2017–2023 GM 6.6L Duramax L5P HP4 to DCR Fuel Pump Conversion Kit

SKU: 608990

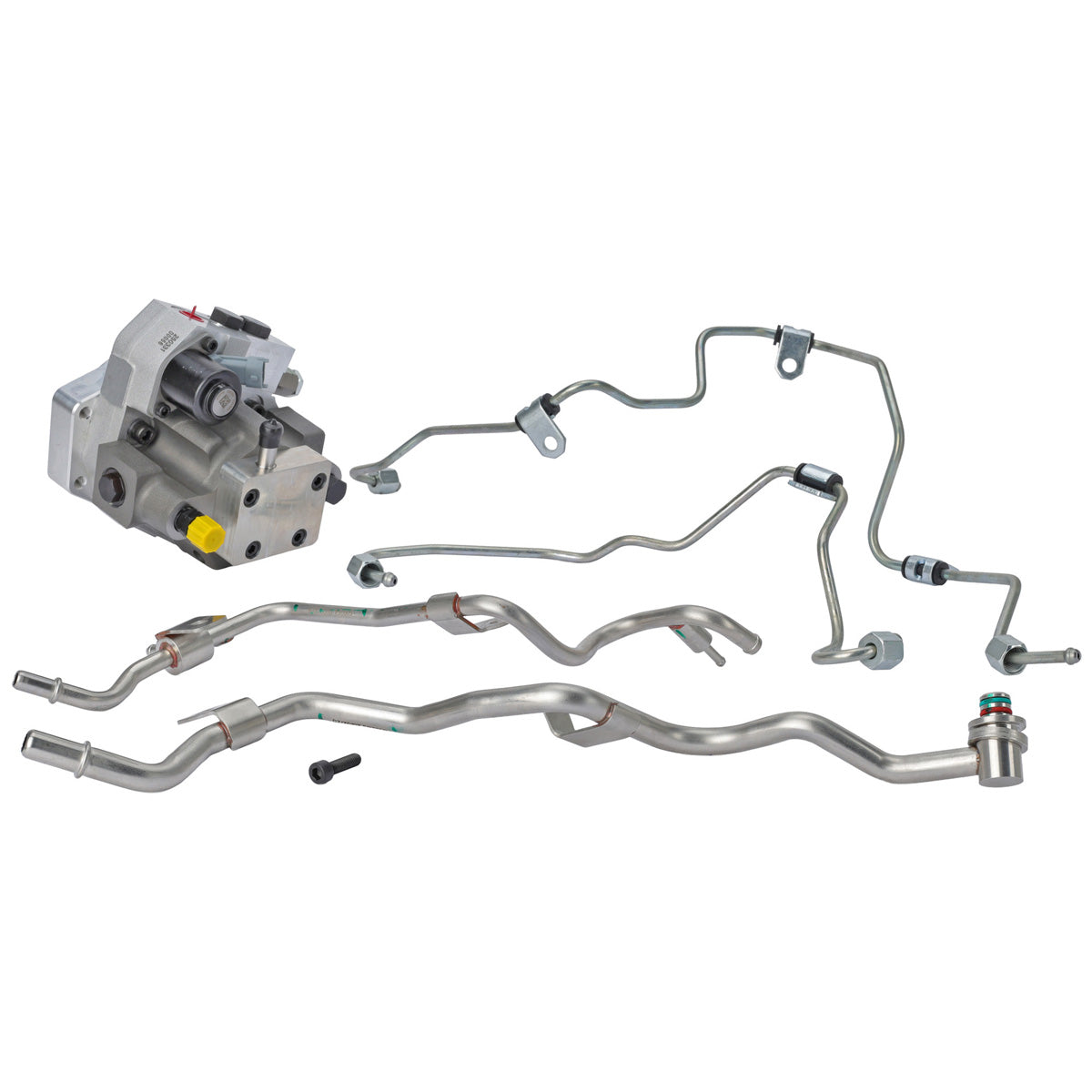

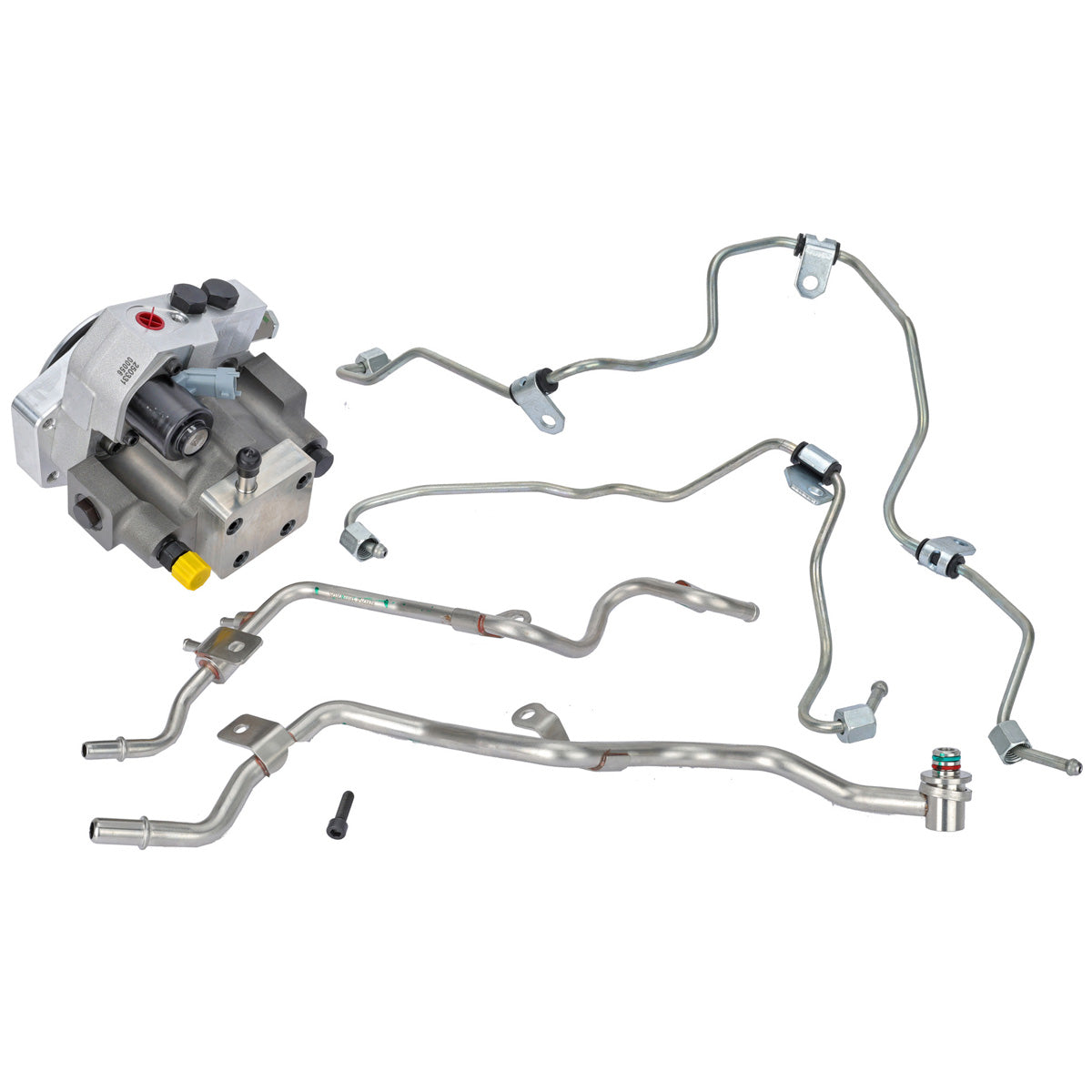

2017-2023 GM 6.6L Duramax L5P HP4 to DCR fuel pump conversion kit with fuel tubes

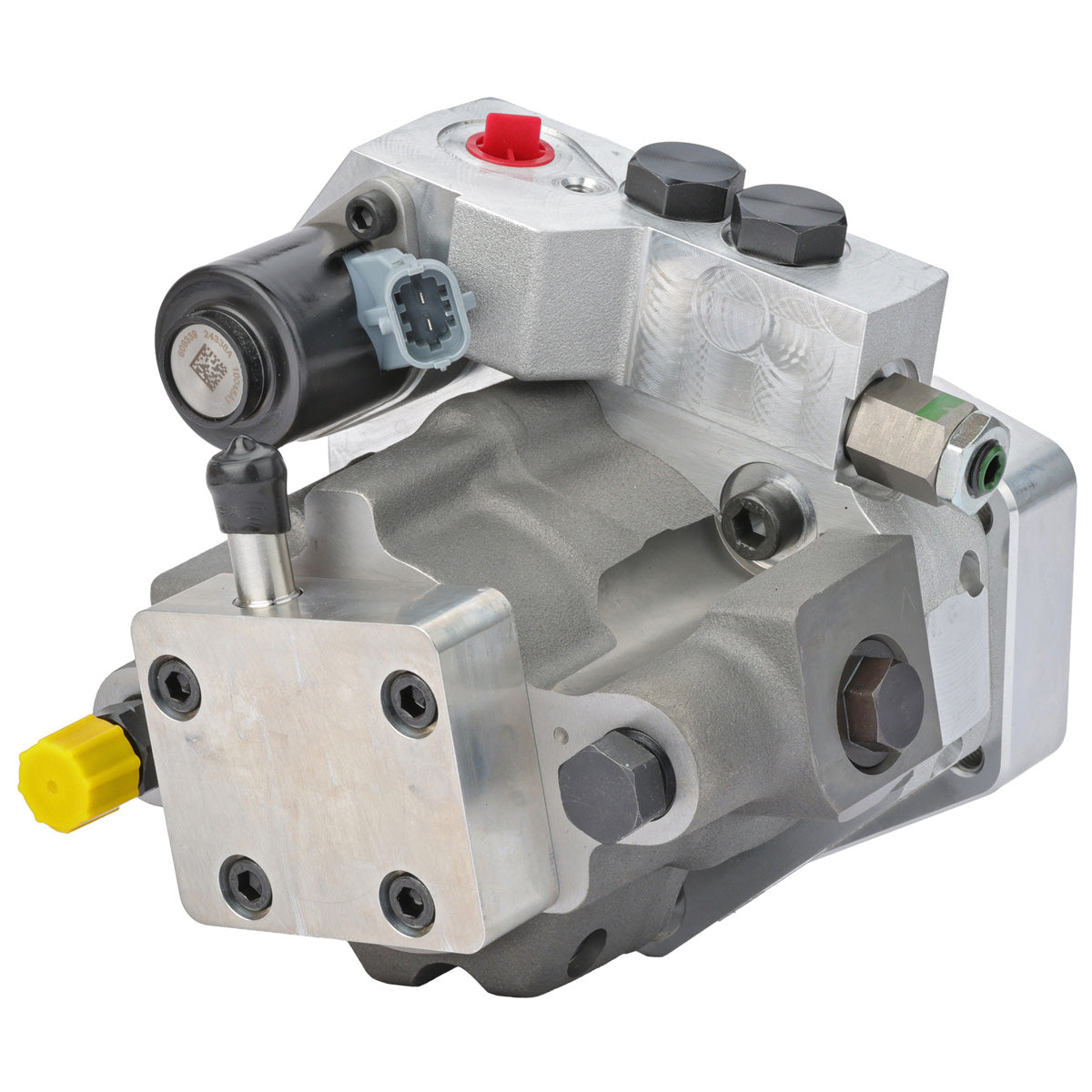

DCR high-pressure fuel pump for 2017-2023 GM 6.6L Duramax L5P conversion kit

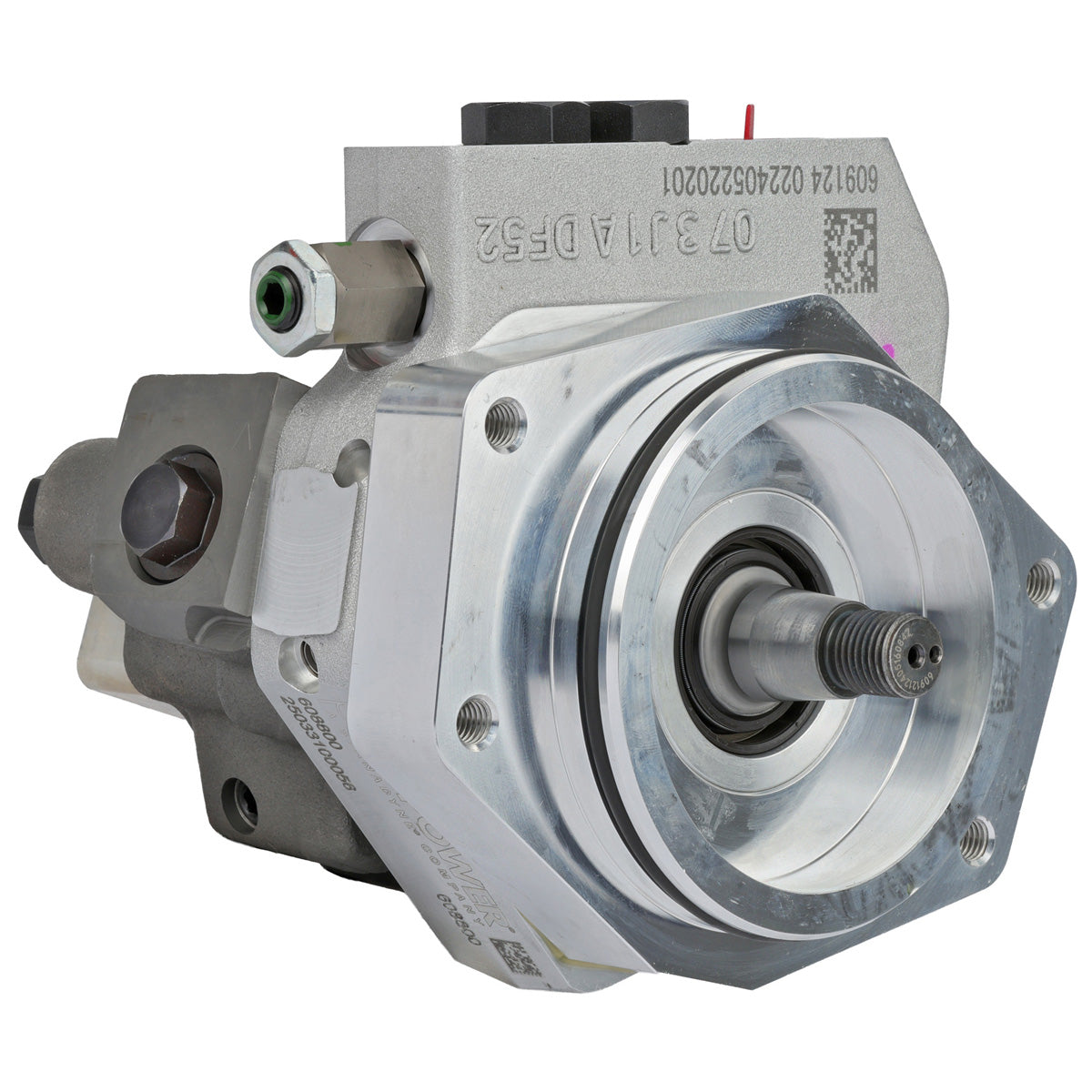

Front view of DCR high-pressure fuel pump used in 2017-2023 Duramax L5P HP4 to DCR conversion

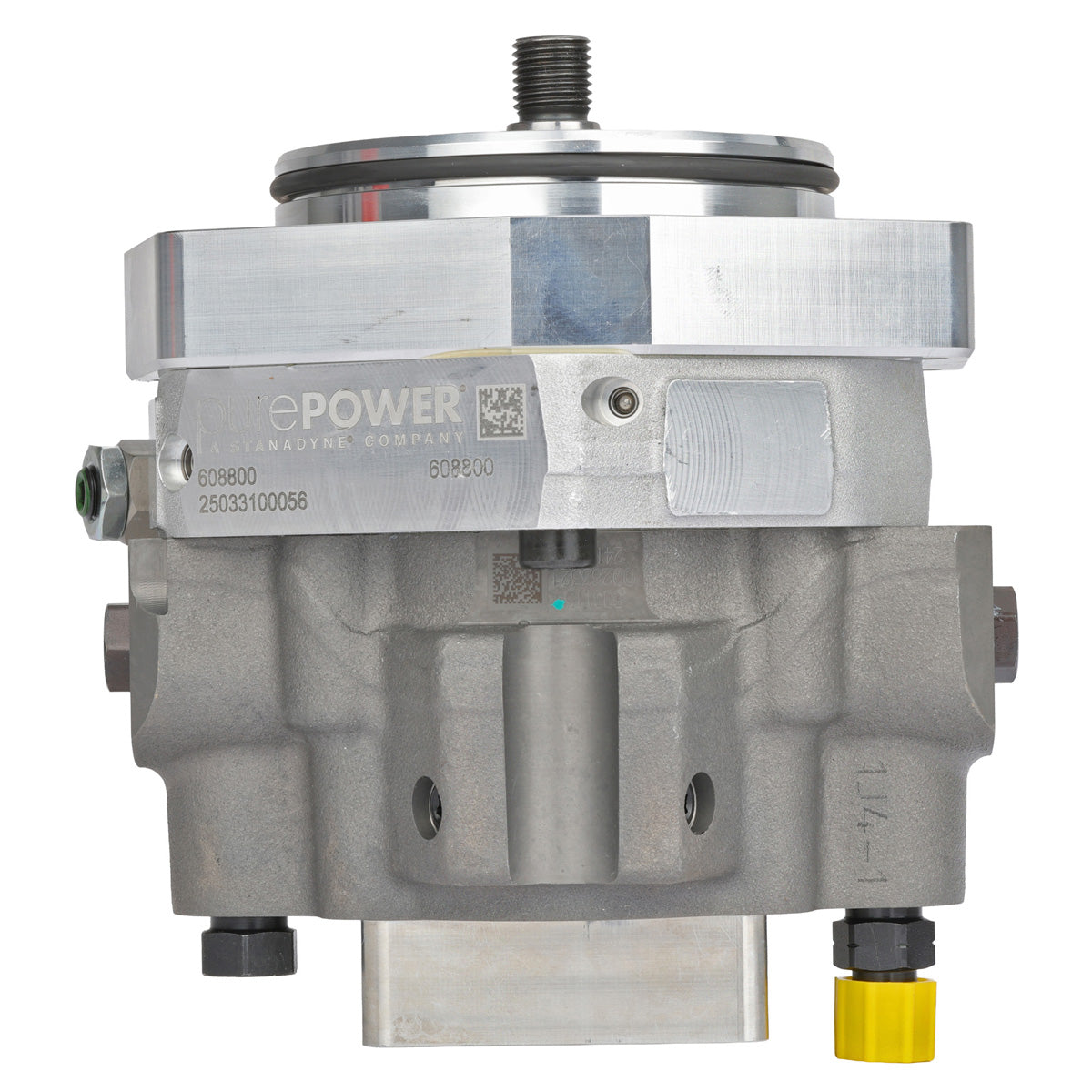

Side view of DCR high-pressure fuel pump for GM 6.6L Duramax L5P 2017-2023
Included fuel tubes for 2017-2023 GM 6.6L Duramax L5P HP4 to DCR fuel pump conversion kit

2017–2023 GM 6.6L Duramax L5P HP4 to DCR Fuel Pump Conversion Kit

SKU: 608990
Regular price $4,266.67
/
  • Free Ground shipping (Over $200*)
  • Top-of-the-line Customer Service
  • Secure payments
Shipping calculated at checkout.

Product Description:

When you’re repairing a failed high-pressure pump or upgrading for long-term confidence, this HP4 to DCR fuel pump conversion kit is built specifically for the 2017–2023 GM 6.6L Duramax L5P. It replaces the factory-installed HP4 high-pressure fuel pump with a DCR fuel pump and includes the fuel tubes required to complete the swap cleanly and correctly.

The result is a purpose-built, OEM-style conversion that supports consistent high-pressure common rail operation for daily driving, towing, and demanding use.

Key features

  • Converts L5P Duramax from HP4 to DCR high-pressure fuel pump
  • Includes low-pressure supply/return and high-pressure rail/pump fuel tubes needed for installation
  • Direct-fit kit engineered for the GM 6.6L L5P fuel system layout

What’s in the box

  • (1) DCR fuel pump
  • (1) High-pressure pump fuel tube
  • (1) High-pressure rail fuel tube
  • (1) Low-pressure supply fuel tube
  • (1) Low-pressure return fuel tube
  • (1) Supply hold-down bolt

Fitment

  • 2017–2023 Chevrolet Silverado 2500HD / 3500HD 6.6L Duramax L5P
  • 2017–2023 GMC Sierra 2500HD / 3500HD 6.6L Duramax L5P

Replaces / interchanges with (common references):
12676904, 12678993, 12701094, 12731367, 2940500701, 294050-0701, 6040608C9, 6040608C91, 608990, ALLAP54850, ALLAP54851, AP54850, AP54851, IP55

FAQ

What does this HP4 to DCR conversion kit do?

This kit replaces the factory-installed HP4 high-pressure pump on 2017–2023 6.6L Duramax L5P applications with a DCR-style high-pressure fuel pump. It also includes the fuel tubes required to complete the conversion.

What vehicles does this kit fit?

Fits 2017–2023 GM 6.6L Duramax L5P applications:

  • Chevrolet Silverado 2500HD / 3500HD (6.6L L5P)
  • GMC Sierra 2500HD / 3500HD (6.6L L5P)
What’s included in the kit?
  • DCR high-pressure fuel pump
  • Low-pressure supply fuel tube
  • Low-pressure return fuel tube
  • High-pressure rail fuel tube
  • High-pressure pump fuel tube
  • Supply hold-down bolt
Do I need tuning after installing this kit?

On most stock-style conversions, this is designed as a direct-fit replacement and typically does not require ECM tuning on an otherwise stock truck. If your truck has aftermarket tuning, modified fuel system components, or additional fuel upgrades, confirm requirements with your tuner before installation.

What’s the difference between an HP4 and a CP4?

“CP4” typically refers to the Bosch CP4 pump used on certain other diesel platforms (commonly discussed on LML Duramax and 6.7 Power Stroke), while “HP4” on the L5P Duramax is generally referring to the factory high-pressure pump used on that application. They’re different pump designs and the names are not interchangeable.

Free economy ground shipping on most orders over $200. This includes lower 48 United States only. Excludes products that must ship freight.

Read Carefully!

When you purchase a product from our website that has a core requirement, you have two options:

1. You choose to pay the core charge and we will ship the product right away, then once we receive the cores you will be refunded the core charge if your cores pass our inspection qualifications. This is the preferred choice and has the least delays.

2. You choose to send in your cores before we ship the product that was purchased. This choice has the risk of delayed shipment of your purchased product and our inventory is not guaranteed by the time we receive your cores. You will need to follow all of the instructions below as quickly as possible so that you can get your purchased product and we can receive the cores. When you choose this option you acknowledge that by the time we receive your cores, our inventory could have change and there could be a delay in your shipment.




Please return all cores to:



Industrial Injection Core Returns
2858 South 300 West
Salt Lake City, Utah 84115

INCLUDE RA# THAT WAS ISSUED AT TIME OF PURCHASE! If RA # is lost, please call Customer Service at (800) 955-0476. Have your original invoice at time of phone call to give all appropriate information for return.

Core return freight is the responsibility of the customer

FULL CREDIT WILL BE GIVEN WHEN:

In order to receive full core credit, your core(s) must be returned within 90 days from receipt of order. It must be as is “off the engine.” Full core credit will be given if core meets acceptance criteria. Cores that are damaged during shipment to Industrial Injection are the responsibility of the customer and their shipping company.

½ CORE CHARGE CREDIT WILL BE GIVEN WHEN:

  • Slightly damaged housing or camshaft
  • Missing parts such as FCA

No Core Credit issued when:

  • Core is seized or hydraulic head is cracked
  • Excessive damage ( Heavy use of Bio-diesel and rust are common causes for unacceptable core)
  • Core is fire damaged
  • Core is returned after 90 days/3months

Please do the following when returning a core:

  • Make sure you have removed all fittings from your old unit
  • Drain all fuel and oil from unit
  • Package cores so that fuel and oil does not escape from the package

NOTE: packages that have fuel or oil residue on the outside of the box during shipping will not be delivered by UPS or the postal service which will cause delays.

  • Please re-use boxes and bags that parts were shipped in originally. These boxes are UPS approved to reduce damage while being handled in freight.
  • All shipping charges are the responsibility of the customer
  • Please write on the box “Core Return” and have RA # clearly written on the outside of box
  • Include copy of original invoice and RGA inside box

PLEASE RETAIN RA#, INVOICE # AND TRACKING NUMBER UNTIL CREDIT IS RECEIVED BY YOU. We do not research by customer name, only invoice # or RA #.
