Borg Warner S400SX Super Core 178781 76mm/87mm

SKU: BW-178781
Borg Warner S400SX Super Core 178781 76mm - Industrial Injection
Borg Warner S400SX Super Core 178781 76mm - Industrial Injection

Borg Warner S400SX Super Core 178781 76mm/87mm

SKU: BW-178781
Regular price $1,649.50
/
  • Free Ground shipping (Over $200*)
  • Top-of-the-line Customer Service
  • Secure payments
Shipping calculated at checkout.

Product Description:

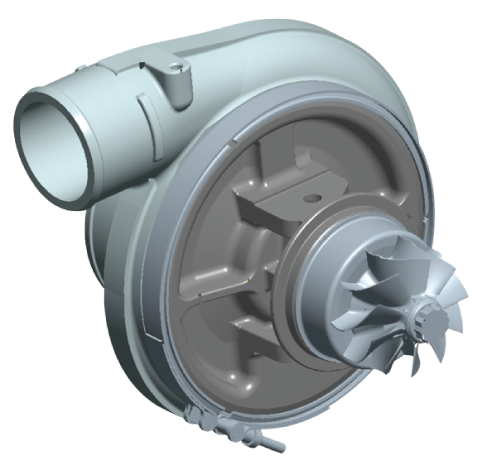

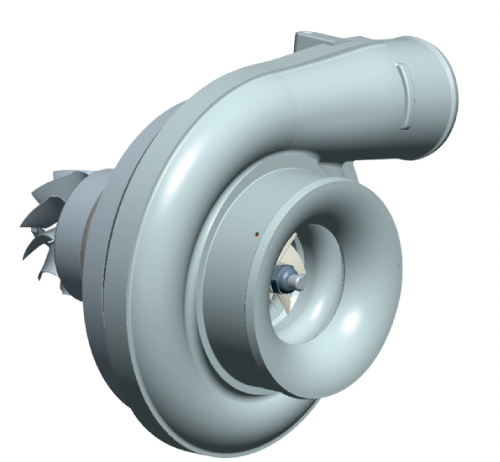

BorgWarner S400SX Super Core

Part Number: 178781

76mm Inducer - 87.37mm Turbine Wheel


BorgWarner S400SX Super Core Features:

  • Twin hydrodynamic journal bearings
  • Extended Tip Technology Compressor Wheel
  • Available Twin Scroll Turbine Housing
  • Adjustable compressor and turbine housing orientation
  • Compressor cover recirculation grooves
  • Optimized compressor inlet geometry

Super Core Specifications

Comp Wheel Inducer
76mm
Turbine Wheel O.D.
87.37mm
Turbine Wheel Exducer
81.74mm

Available Turbine Housings

Part # A/R Inlet Configuration Outlet Configuration
178787 0.90 Volute, Twin Flow T4 Inlet Half Marmon
178788 1.00
178789 1.10
178790 1.25
177102 0.90 Volute, Twin Flow T4 Inlet Half Marmon
177103 1.00
177104 1.10
177105 1.25

Free economy ground shipping on most orders over $200. This includes lower 48 United States only. Excludes products that must ship freight.

Read Carefully!

When you purchase a product from our website that has a core requirement, you have two options:

1. You choose to pay the core charge and we will ship the product right away, then once we receive the cores you will be refunded the core charge if your cores pass our inspection qualifications. This is the preferred choice and has the least delays.

2. You choose to send in your cores before we ship the product that was purchased. This choice has the risk of delayed shipment of your purchased product and our inventory is not guaranteed by the time we receive your cores. You will need to follow all of the instructions below as quickly as possible so that you can get your purchased product and we can receive the cores. When you choose this option you acknowledge that by the time we receive your cores, our inventory could have change and there could be a delay in your shipment.




Please return all cores to:

Industrial Injection Core Returns
2858 South 300 West
Salt Lake City, Utah 84115

INCLUDE RA# THAT WAS ISSUED AT TIME OF PURCHASE! If RA # is lost, please call Customer Service at (800) 955-0476. Have your original invoice at time of phone call to give all appropriate information for return.

Core return freight is the responsibility of the customer

FULL CREDIT WILL BE GIVEN WHEN:

In order to receive full core credit, your core(s) must be returned within 90 days from receipt of order. It must be as is “off the engine.” Full core credit will be given if core meets acceptance criteria. Cores that are damaged during shipment to Industrial Injection are the responsibility of the customer and their shipping company.

½ CORE CHARGE CREDIT WILL BE GIVEN WHEN:

  • Slightly damaged housing or camshaft

No Core Credit issued when:

  • Core is seized or hydraulic head is cracked
  • Excessive damage ( Heavy use of Bio-diesel and rust are common causes for unacceptable core)
  • Core is fire damaged
  • Core is returned after 90 days/3months

Please do the following when returning a core:

  • Make sure you have removed all fittings from your old unit
  • Drain all fuel and oil from unit
  • Package cores so that fuel and oil does not escape from the package

NOTE: packages that have fuel or oil residue on the outside of the box during shipping will not be delivered by UPS or the postal service which will cause delays.

  • Please re-use boxes and bags that parts were shipped in originally. These boxes are UPS approved to reduce damage while being handled in freight.
  • All shipping charges are the responsibility of the customer
  • Please write on the box “Core Return” and have RA # clearly written on the outside of box
  • Include copy of original invoice and RGA inside box

PLEASE RETAIN RA#, INVOICE # AND TRACKING NUMBER UNTIL CREDIT IS RECEIVED BY YOU. We do not research by customer name, only invoice # or RA #.
