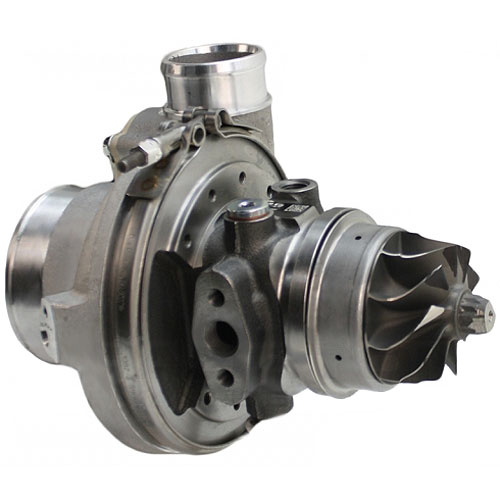

Borg Warner S500SX Supercore 91mm (120/110)

SKU: BW-179190
Borg Warner S500SX Supercore 91mm (120/110) - Industrial Injection

Borg Warner S500SX Supercore 91mm (120/110)

SKU: BW-179190
Regular price $2,008.25
  • Free Ground shipping (Over $200*)
  • Top-of-the-line Customer Service
  • Secure payments
Shipping calculated at checkout.

Product Description:

BorgWarner S500SX Super Core - 90.67mm Inducer - 99.08mm Turbine Wheel - 179190

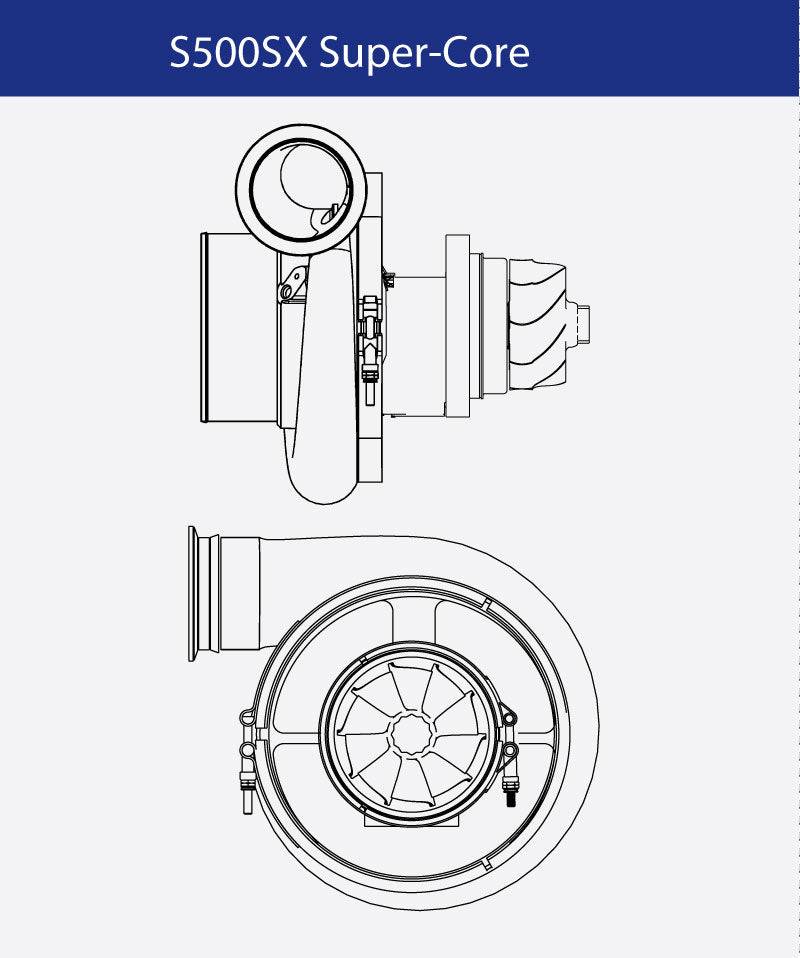

BorgWarner S500SX Super Core

Part Number: 179190

90.67mm Inducer - 99.08mm Turbine Wheel

BorgWarner S500SX Super Core Features:

  • Twin hydrodynamic journal bearings
  • Extended Tip Technology Compressor Wheel
  • Available Twin Scroll and Open Flow Turbine Housing
  • Adjustable compressor and turbine housing orientation
  • Compressor cover recirculation grooves
  • Optimized compressor inlet geometry
  • Dual machined compressor cover discharge connection (v-band or hose bead)
  • Premachined speed sensor mounting boss

Super Core Specifications

Comp Wheel Inducer
Turbine Wheel O.D.
Turbine Wheel Exducer

Available Turbine Housings

Part # A/R Inlet Configuration Outlet Configuration
179159 0.85 Volute, Open Flow T6 Inlet Half Marmon
179160 1.00
179161 1.15
178498 1.30
179162 1.45
179478 1.15 Volute, Twin Flow T6 Inlet Half Marmon
179192 1.45
179193 1.60
BorgWarner 179190 Compressor Map
BorgWarner S500SX Super Core - 90.67mm Inducer - 99.08mm Turbine Wheel - 179190
