BorgWarner 74.5mm Super Core (100/83)

SKU: BW-179175
BorgWarner 74.5mm Super Core (100/83) - Industrial Injection
BorgWarner 74.5mm Super Core (100/83) - Industrial Injection

BorgWarner 74.5mm Super Core (100/83)

SKU: BW-179175
Regular price $1,351.91
/
  • Free Ground shipping (Over $200*)
  • Top-of-the-line Customer Service
  • Secure payments
Shipping calculated at checkout.

Product Description:

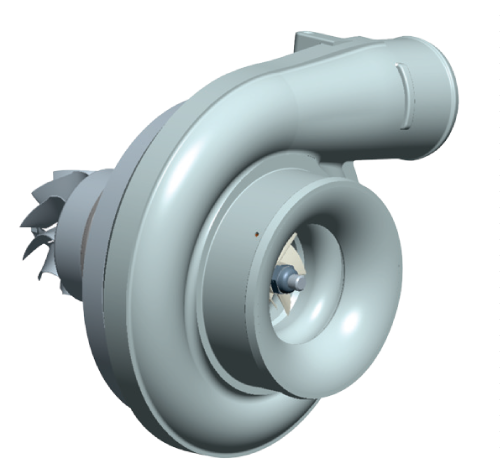

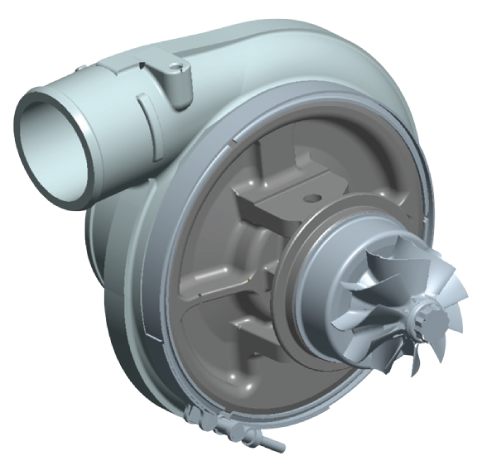

BorgWarner S400SX Super Core - 74.56mm Inducer - 87.37mm Turbine Wheel - 179175

BorgWarner S400SX Super Core

Part Number: 179175

74.56mm Inducer - 87.37mm Turbine Wheel


BorgWarner S400SX Super Core Features:

  • Twin hydrodynamic journal bearings
  • Extended Tip Technology Compressor Wheel
  • Twin Scroll Turbine Housing
  • Adjustable compressor and turbine housing orientation
  • Compressor cover recirculation grooves
  • Optimized compressor inlet geometry

Super Core Specifications

Comp Wheel Inducer
74.56mm
Turbine Wheel O.D.
87.37mm
Turbine Wheel Exducer
81.74mm

Available Turbine Housings

Part # A/R Inlet Configuration Outlet Configuration
178787 0.90 Volute, Twin Flow T4 Inlet Half Marmon
178788 1.00
178789 1.10
178790 1.25
BorgWarner S400SX Super Core - 67.7mm Inducer - 83mm Turbine Wheel - 179352

Free economy ground shipping on most orders over $200. This includes lower 48 United States only. Excludes products that must ship freight.

Please return all cores to:

INJECTORS AND FUEL PUMPS

Industrial Injection Service Core Returns
1201 South 700 West
Salt Lake City, Utah 84104

TURBOS, ENGINE PARTS, & RETURNS

Industrial Injection Diesel Core Returns
2858 South 300 West
Salt Lake City, Utah 84115

INCLUDE RA# THAT WAS ISSUED AT TIME OF PURCHASE! If RA # is lost, please call Customer Service at (800) 955-0476. Have your original invoice at time of phone call to give all appropriate information for return.

Core return freight is the responsibility of the customer

FULL CREDIT WILL BE GIVEN WHEN:

In order to receive full core credit, your core(s) must be returned within 90 days from receipt of order. It must be as is “off the engine.” Full core credit will be given if core meets acceptance criteria. Cores that are damaged during shipment to Industrial Injection Service are the responsibility of the customer and their shipping company.

½ CORE CHARGE CREDIT WILL BE GIVEN WHEN:

  • Slightly damaged housing or camshaft

No Core Credit issued when:

  • Cores is seized or hydraulic head is cracked
  • Excessive damage ( Heavy use of Bio-diesel and rust are common causes for unacceptable core)
  • Core is fire damaged
  • Core is returned after 90 days/3months

Please do the following when returning a core:

  • Make sure you have removed all fittings from your old unit
  • Drain all fuel and oil from unit
  • Package cores so that fuel and oil does not escape from the package

NOTE: packages that have fuel or oil residue on the outside of the box during shipping will not be delivered by UPS or the postal service which will cause delays.

  • Please re-use boxes and bags that parts were shipped in originally. These boxes are UPS approved to reduce damage while being handled in freight.
  • All shipping charges are the responsibility of the customer
  • Please write on the box “Core Return” and have RA # clearly written on the outside of box
  • Include copy of original invoice and RGA inside box

PLEASE RETAIN RA#, INVOICE # AND TRACKING NUMBER UNTIL CREDIT IS RECEIVED BY YOU. We do not research by customer name, only invoice # or RA #.
