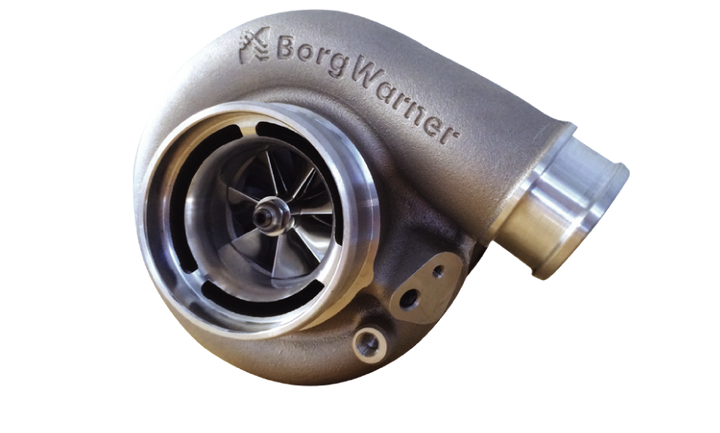

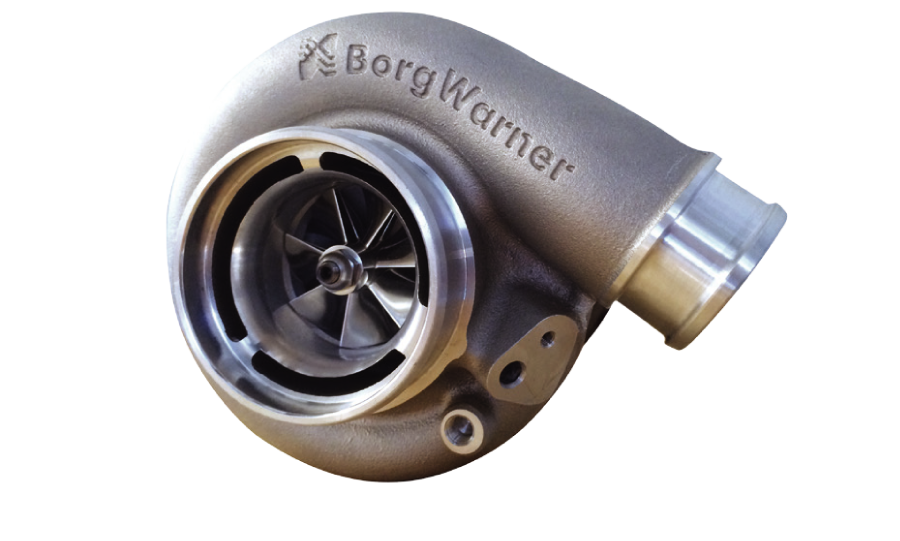

BorgWarner S252SX-E

SKU: BW-12709095019
BorgWarner S252SX-E
BorgWarner S252SX-E
BorgWarner S252SX-E

BorgWarner S252SX-E

SKU: BW-12709095019
Regular price $804.61
/
  • Free Ground shipping (Over $200*)
  • Top-of-the-line Customer Service
  • Secure payments
Shipping calculated at checkout.

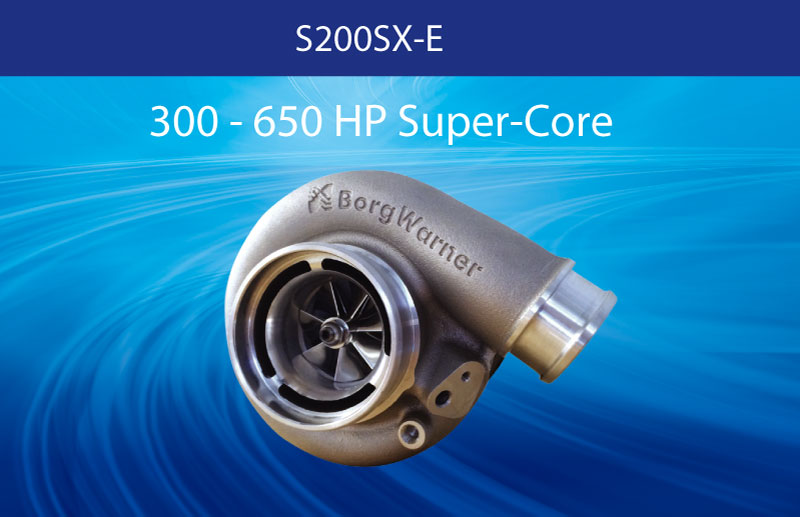

BorgWarner S200SX-E

BorgWarner S200SX-E Turbo

BorgWarner S200SX-E Key Turbo Features

  • Integrated speed sensor port
  • Forged milled compressor wheel
  • Pre-machined boost port
  • Optimized compressor stage aerodynamics
  • Not included with turbo assemblies: Speed sensor, Turbine outlet V-Band, Drain port fitting.
  • The BorgWarner super core assembly consists of the compressor cover attached to the cartridge, all cartridge to turbine housing mounting hardware, clamp plates, cap screws and mounting gaskets. Speed sensor and turbine outlet V-band are not included with turbo assemblies. Choose a turbine housing from our extensive list of factory housings.

BorgWarner S200SX-E Turbo 12709095019

Features:

  • Comp Wheel OD (in): 2.74
  • Comp Wheel Inducer (in): 2.05
  • Comp Wheel Inducer (mm): 52.17
  • Turbine Wheel OD (mm): 69.56
  • Turbine Wheel Exducer (in): 2.42
  • Turbine Wheel Exducer (mm): 61.43
BorgWarner S200SX-E
BorgWarner S200SX-E Turbo Models
BorgWarner S200SX-E4 Compressor Map
BorgWarner S200SX-E Turbine Options
