BorgWarner S400SX 80mm Cartridge (110/87)

SKU: BW-179181
BorgWarner S400SX 80mm Cartridge (110/87)
BorgWarner S400SX 80mm Cartridge (110/87)

BorgWarner S400SX 80mm Cartridge (110/87)

SKU: BW-179181
Regular price $1,241.96
/
  • Free Ground shipping (Over $200*)
  • Top-of-the-line Customer Service
  • Secure payments
Shipping calculated at checkout.

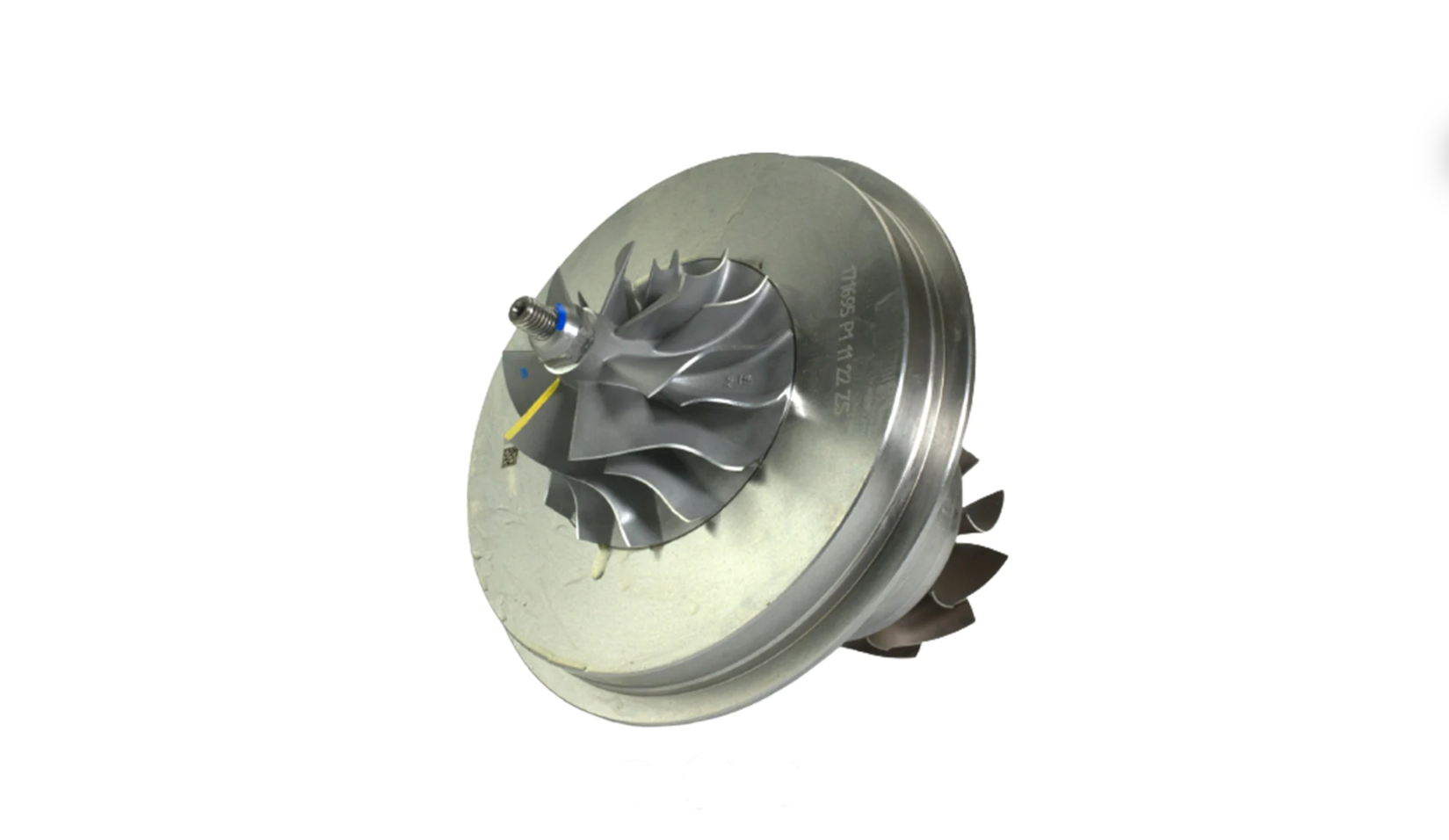

BorgWarner S400SX Cartridge

Part Number: 179181

76mm Inducer - 87.37mm Turbine Wheel


BorgWarner S400SX Cartridge Features:

  • Twin hydrodynamic journal bearings
  • Extended Tip Technology Compressor Wheel
  • Available Twin Scroll Turbine Housing
  • Available Compressor cover recirculation grooves
  • Available Optimized compressor inlet geometry

Cartridge Specifications

Comp Wheel Inducer
76mm
Turbine Wheel O.D.
87.37mm
Turbine Wheel Exducer
81.74mm

Available Turbine Housings

Part # A/R Inlet Configuration Outlet Configuration
178787 0.90 Volute, Twin Flow T4 Inlet Half Marmon
178788 1.00
178789 1.10
178790 1.25
177102 0.90 Volute, Twin Flow T4 Inlet Half Marmon
177103 1.00
177104 1.10
177105 1.25
BorgWarner 179181 Compressor Map
