Garrett G-XRace Turbocharger GXR45-73 - Industrial Injection

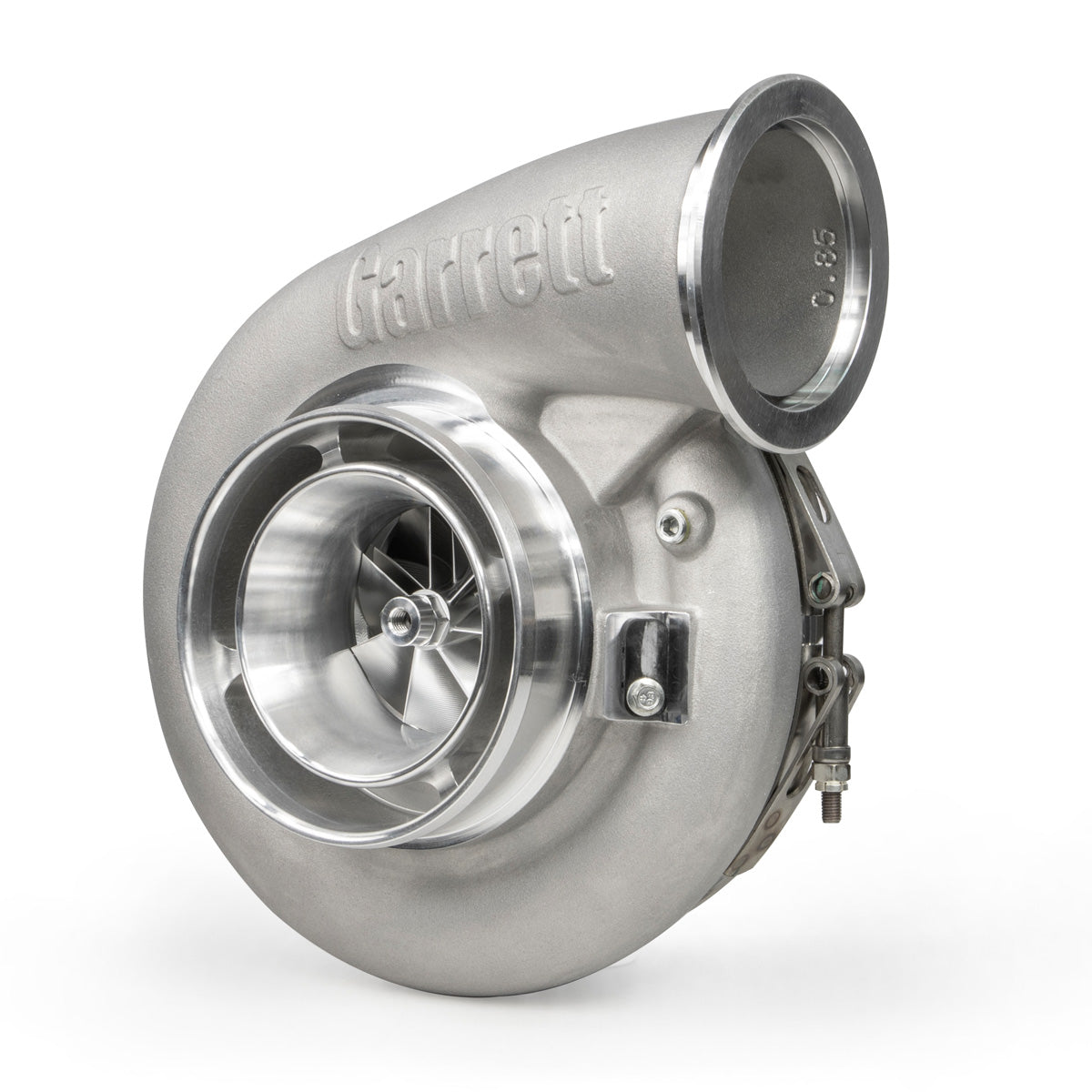

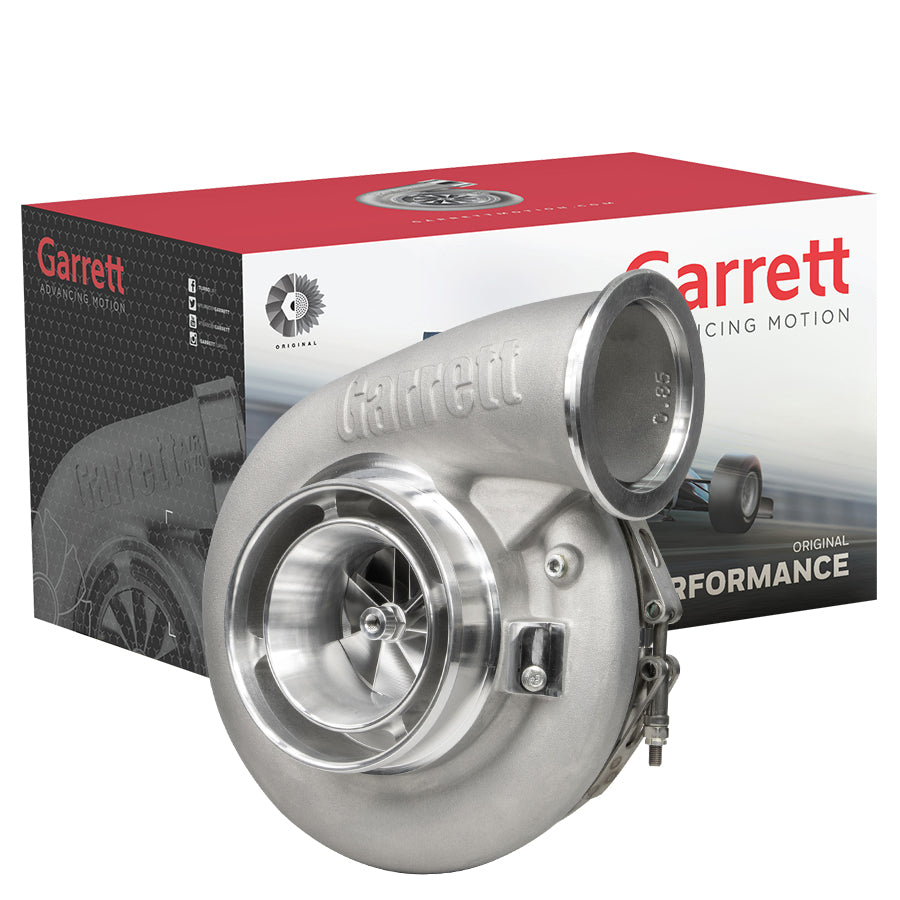

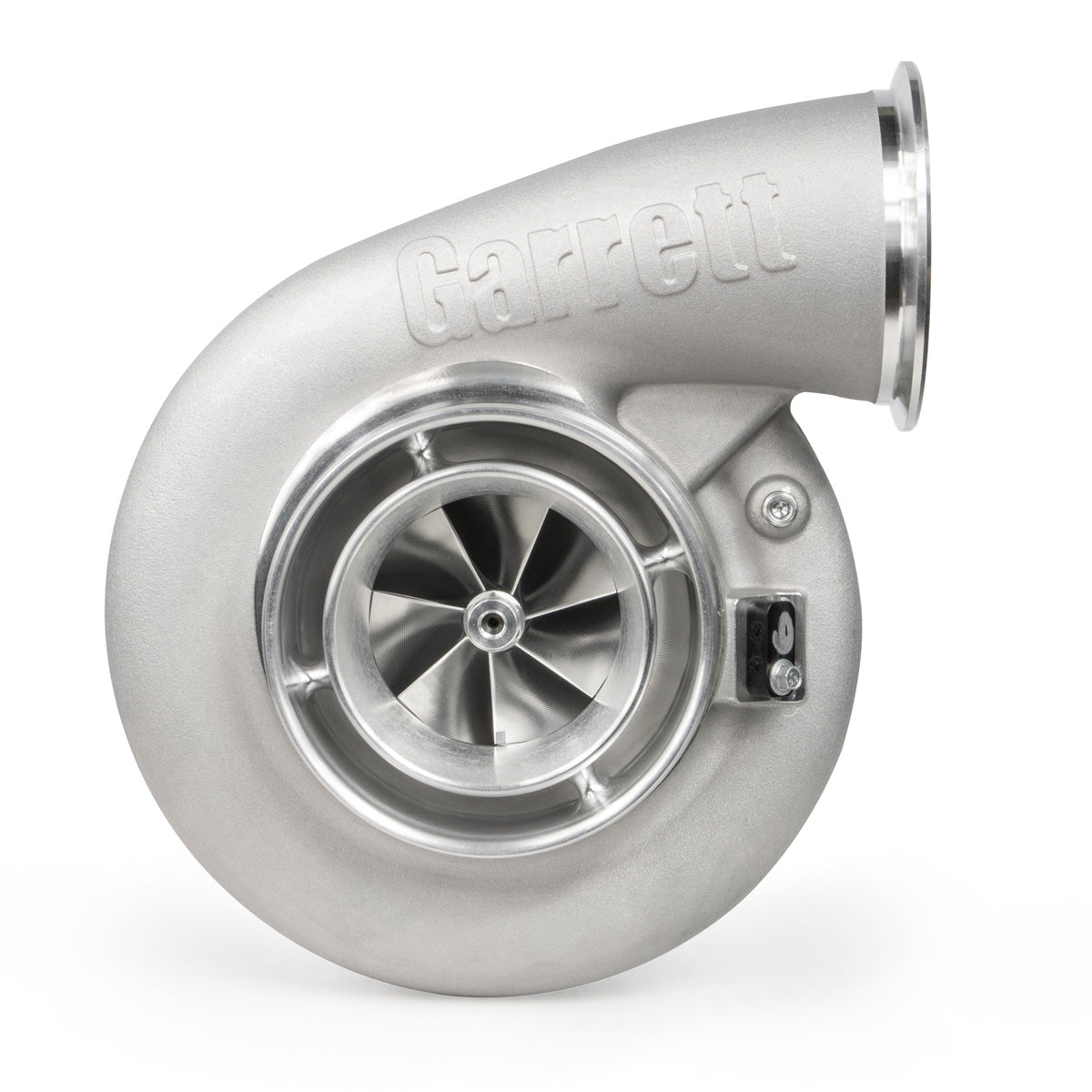

Garrett G-XRace Turbocharger GXR42-68

Name: Garrett G-XRace Turbocharger GXR42-68
Brand: Garrett
SKU: 934173-5001S
Price: 3231.87 USD
Availability: InStock

Garrett

SKU: 934173-5001S

Price

$3,231⁸⁷

$0⁰⁰ $3,231⁸⁷

Save $-3,231.87

/

Free Ground shipping (Over $200*)

Top-of-the-line Customer Service

Secure payments

Industrial Injection Tested & Approved

We don’t just resell any product—we only offer parts and components that meet our rigorous standards for performance, durability, and reliability. If it doesn’t earn our trust, it doesn’t earn the Industrial Injection Tested & Approved stamp. More Info »

Quantity

Product Description:

Take Your Racing Performance to the Next Level with Garrett G-XRace Turbochargers

The Garrett G-XRace Turbocharger Series is engineered for racers who push their cars to the limit. Featuring XBoost Technology, these turbos deliver increased power and unmatched performance to take you to the finish line. With up to 29% increased compressor flow and enhanced pressure ratios, the G-XRace turbochargers provide higher boost pressures and maximum efficiency at high flow rates, all while keeping intake temperatures low. Whether you're competing on the track or chasing your personal best, the G-XRace will give you the edge you need.

GXR42-68 (PN: 934173-5001S)
HP: 650-1400 | Displacement: 2.0L-7.0L

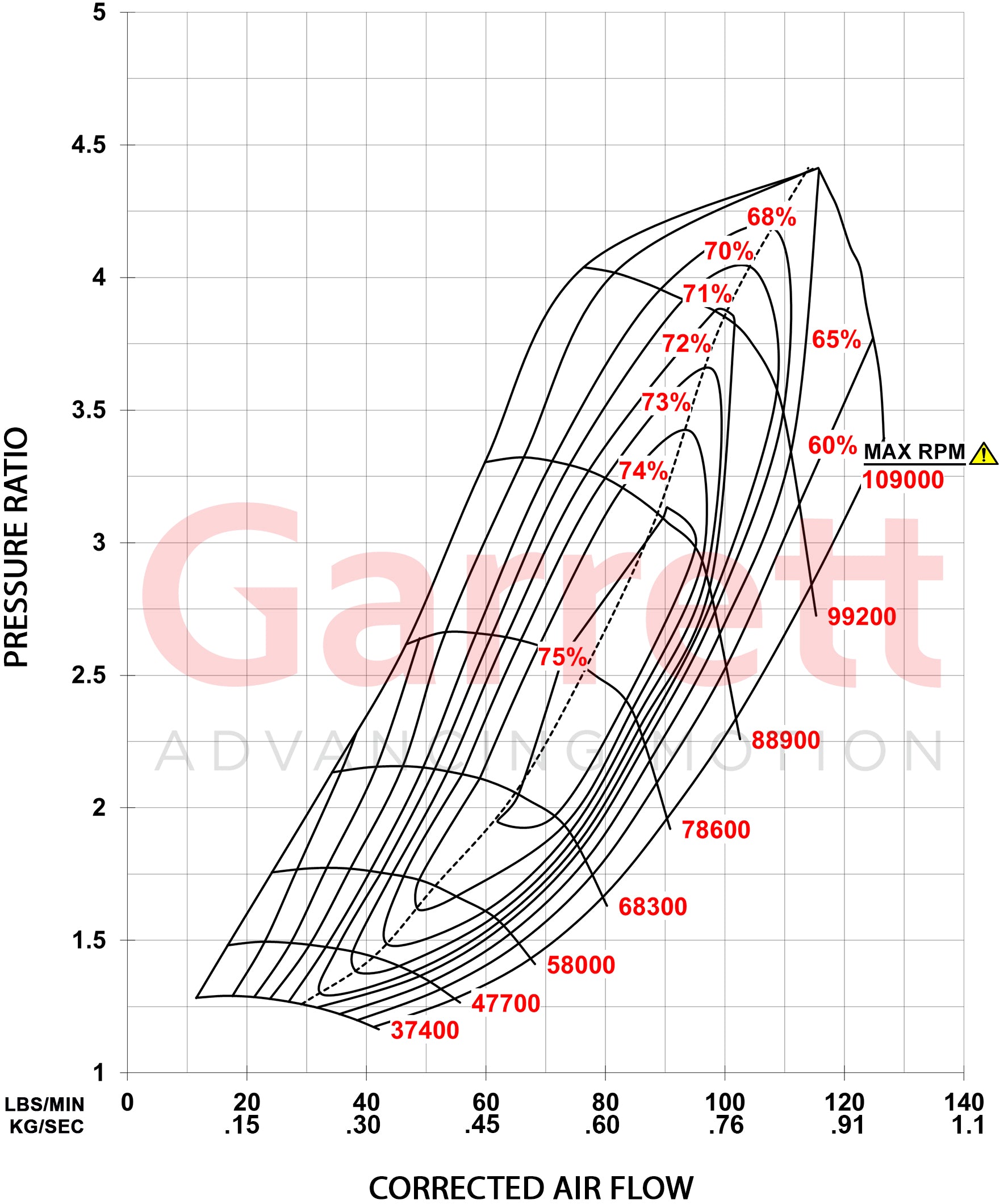

Compressor:
- Inducer: 68.9mm
- Exducer: 102mm
- Trim: 45
- A/R: 0.85
Turbine:
- Inducer: 82mm
- Exducer: 75mm
- Trim: 84

Key Features of Garrett G-XRace Turbochargers

XBoost Technology: Increases power output and performance.
Enhanced Flow Rates: Up to +29% compressor flow for extreme power gains.
High Boost Capabilities: Achieve greater pressure ratios and boost pressure for maximum performance.
Advanced Efficiency: Optimized design ensures lower intake temperatures and improved high-flow efficiency.
Versatile Mounting Options: Twin-scroll T4 and V-band turbine inlet flanges available to fit different engine setups.
Lightweight Design: Aluminum backplate for reduced weight and optimized performance.

Turbine Housing Options:

PN: 757707-0011 A/R: 1.01 Inlet: V-Band Outlet: V-Band Wastegate: External Divided: NO
PN: 757707-0012 A/R: 1.15 Inlet: V-Band Outlet: V-Band Wastegate: External Divided: NO
PN: 757707-0013 A/R: 1.28 Inlet: V-Band Outlet: V-Band Wastegate: External Divided: NO
PN: 757707-0014 A/R: 1.01 Inlet: T4 Outlet: V-Band Wastegate: External Divided: YES
PN: 757707-0015 A/R: 1.15 Inlet: VT4 Outlet: V-Band Wastegate: External Divided: YES
PN: 757707-0016 A/R: 1.28 Inlet: T4 Outlet: V-Band Wastegate: External Divided: YES

Built for Performance, Driven by Passion The Garrett G-XRace Turbocharger is the ultimate performance solution for those who are serious about winning. With decades of experience in motorsports and an engineering team dedicated to durability and xtreme performance, Garrett delivers a turbo that racers trust.

Garrett G-XRace Turbochargers are ready to handle the demands of the track. Whether you're gunning for the podium in drag racing or competing in the most demanding race events, Garrett G-XRace has your back.

WARNING: Operation beyond max turbocharger speed can cause damage and premature failure. A speed sensor port is included for your safety and performance optimization. Please verify class rules before purchase.
