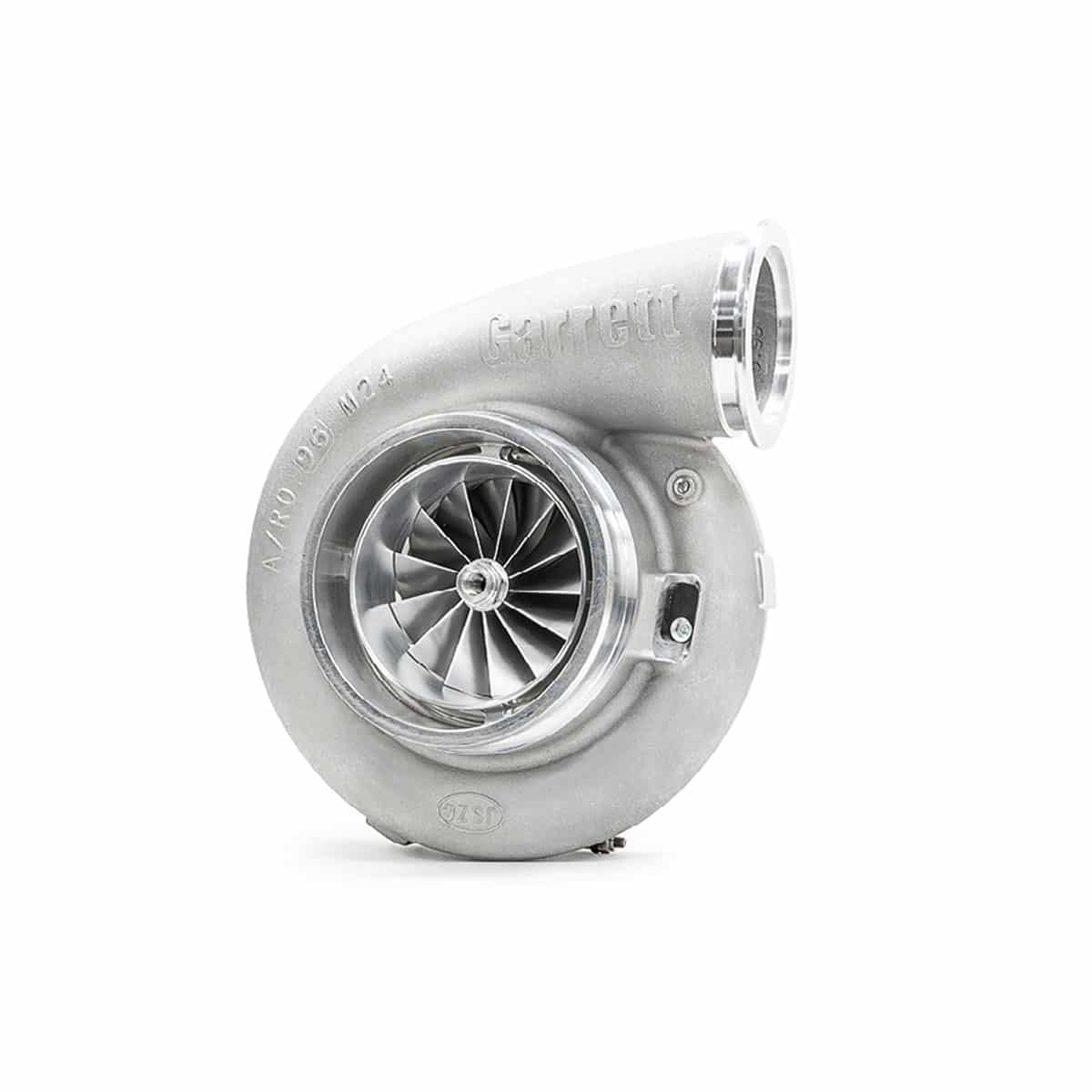

880547-5032S - G57-2350 94mm Super Core
G-series turbochargers feature the latest innovations in turbocharger technology. Advanced compressor and turbine aero offer a range of high horsepower performance-boosting solutions for 3.0L - 12.0L engine platforms. 88mm, 94mm, 98mm, 102mm, 106mm compressor inducer sizes produce up to 3000 horsepower for todayâ€™s top drag race teams.
- Inducer: 94mm
- Exducer: 133mm
- A/R: 0.96
- Inducer: 118mm
- Exducer: 112mm
- Trim: 90
- Supports up to 3000 horsepower
- 118mm inducer turbine wheel

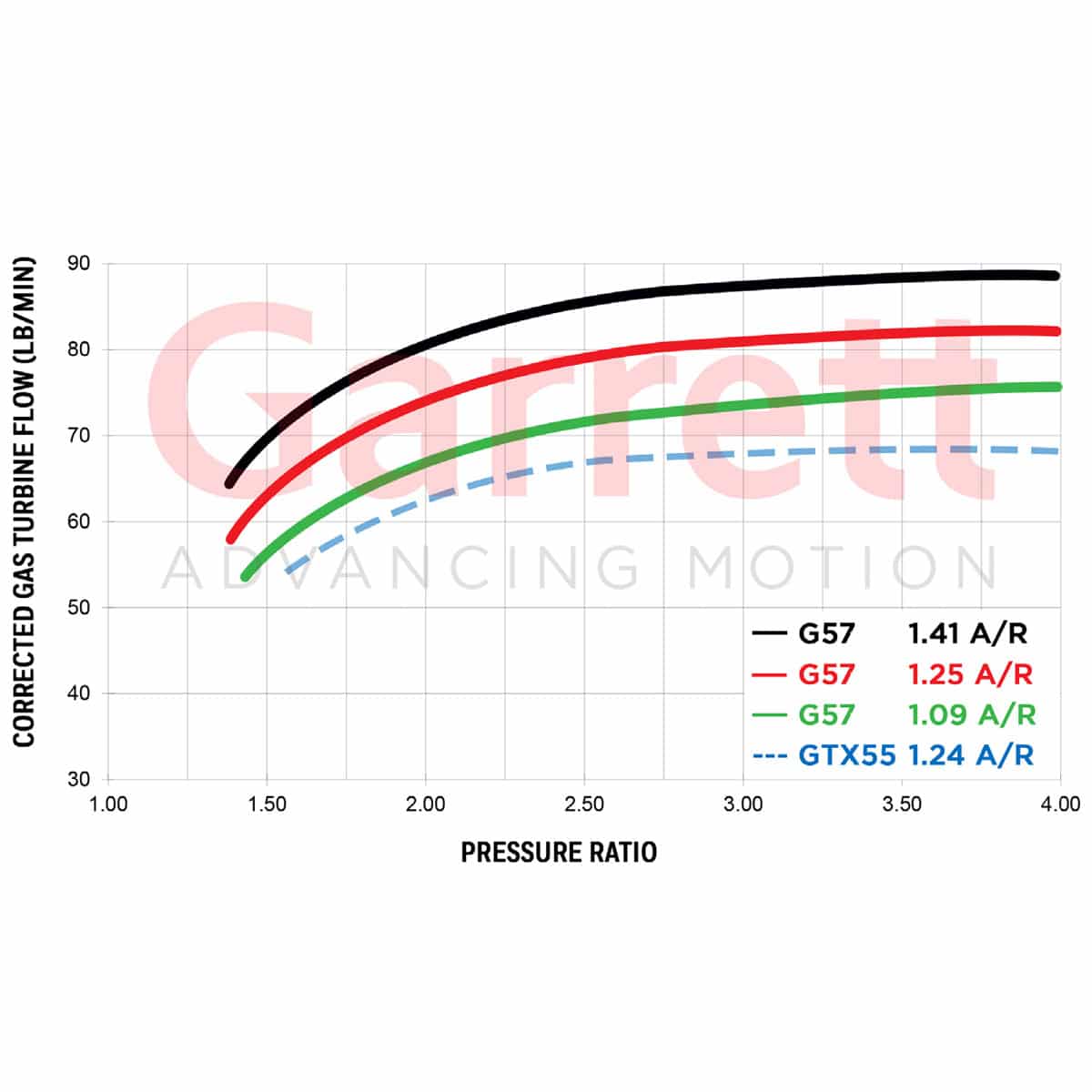

- 28% more turbine flow (compared to GTX) see graph
- One-piece aluminum center housing
- 16mm dual ceramic ball bearing cartridge
- Outline interchangeable with GTX Gen II turbos
- Turbine housing sold individually
Turbine Housing Options:
