Garrett G-Series II G30-825 Turbochargers

Garrett SKU: 934118-5003S
Turbine Housing
Price
Regular price $3,15048
Regular price $000 Sale price $3,15048
Save $-3,150.48
/
  • Free Ground shipping (Over $200*)
  • Top-of-the-line Customer Service
  • Secure payments

Industrial Injection Tested & Approved

Industrial Injection Tested & Approved

We don’t just resell any product—we only offer parts and components that meet our rigorous standards for performance, durability, and reliability. If it doesn’t earn our trust, it doesn’t earn the Industrial Injection Tested & Approved stamp. More Info »

Shipping calculated at checkout.

Product Description:

High-Performance Turbo for 2.0L - 3.5L Engines | 475-825 HP | Standard Rotation

Product Overview

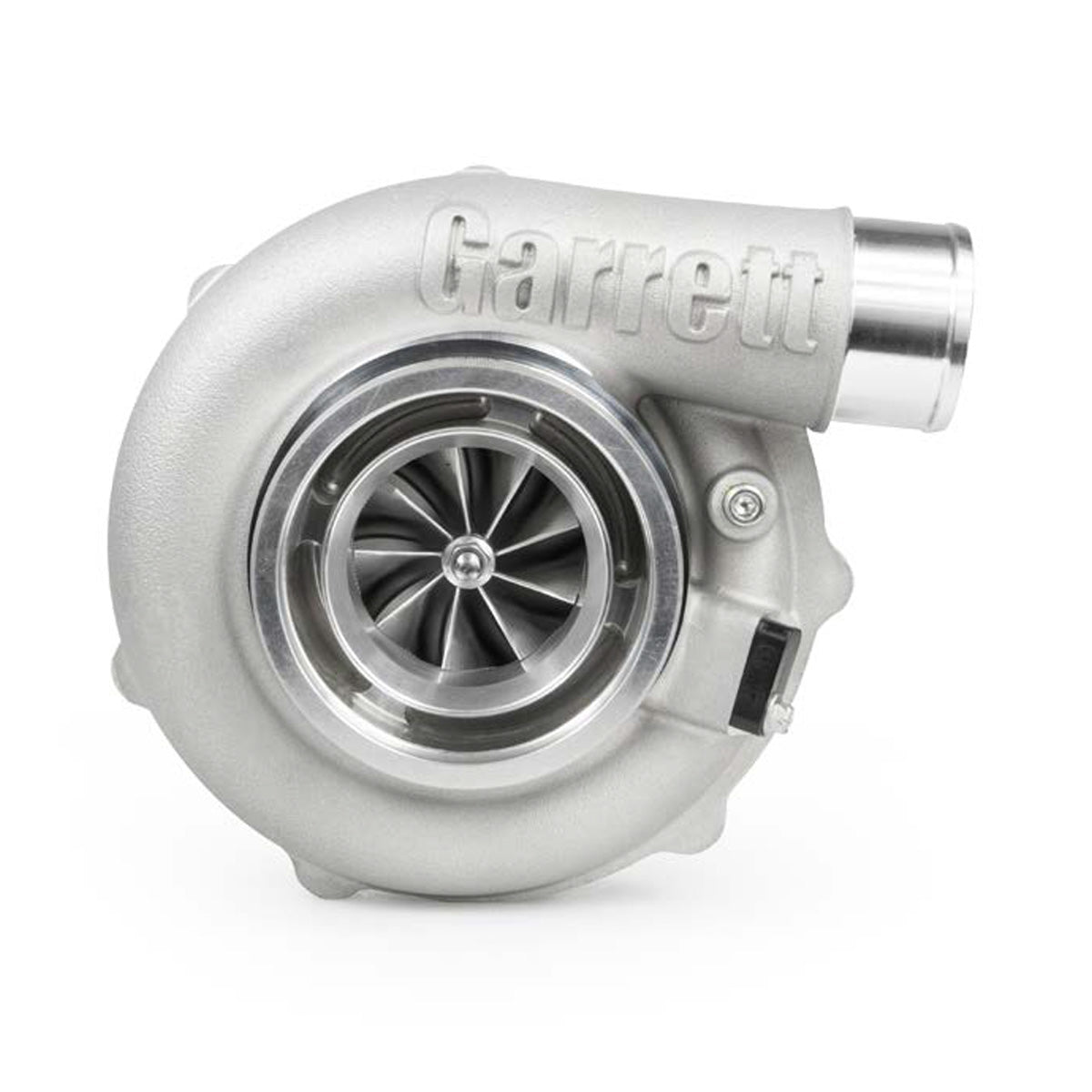

The Garrett G-Series II G30-825 Turbocharger is engineered to provide maximum horsepower, faster spool, and enhanced efficiency for 2.0L - 3.5L engines. Supporting 475-825 HP, this turbo is ideal for high-performance street, track, and racing applications.

With next-generation compressor aerodynamics, the G-Series II increases airflow by up to 10% more than its predecessor while maintaining compatibility with G-Series Gen I housings. This ensures a seamless upgrade for existing users.

Turbine Housing Options (Select from Dropdown)

The G30-825 is available in two turbine A/R options, allowing you to tailor performance based on your build:

  • 0.83 A/R (PN: 934118-5003S) – Faster spool, ideal for street-driven performance setups.
  • 1.01 A/R (PN: 934118-5004S) – Higher flow, optimized for top-end power in high-boost race applications.

👉 Use the dropdown menu to select the best turbine housing for your performance needs!

Key Features & Benefits

✔ Next-Gen Compressor Design – Increased efficiency, power, and spool speed.
✔ Up to 10% More Flow – Compared to Gen I, improving boost response and high-RPM performance.
✔ Direct Gen I Upgrade – Compatible with Gen I turbine and compressor housings for easy installation.
✔ Pre-Assembled & Calibrated – Includes a 0.5 bar actuator for precise boost control.
✔ Internal Wastegate – Designed for seamless integration with OEM or custom builds.

Technical Specifications

General Specs

  • Horsepower Range: 475-825 HP
  • Engine Displacement: 2.0L - 3.5L
  • Rotation: Standard
  • Actuator: Pre-installed and calibrated at 0.5 bar

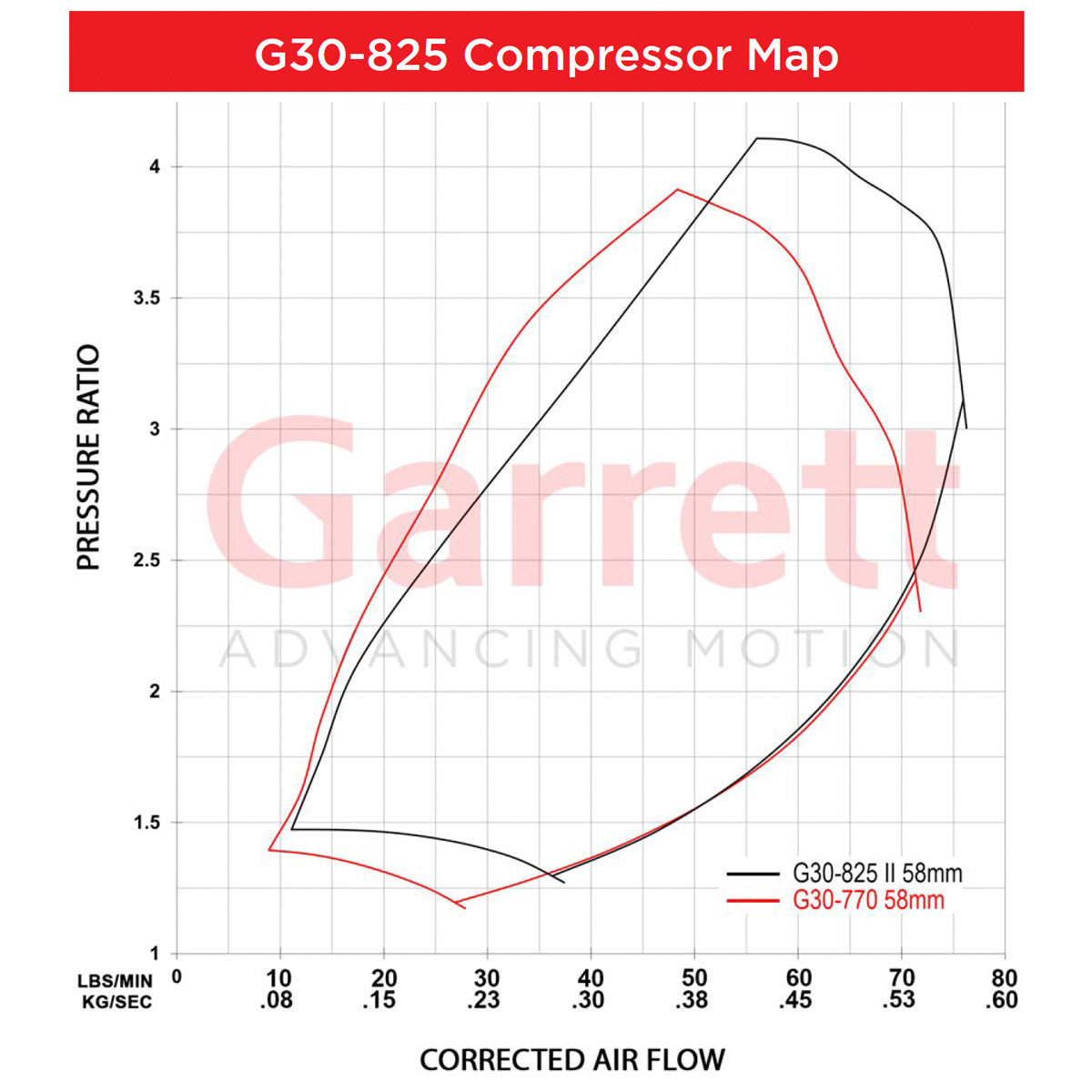

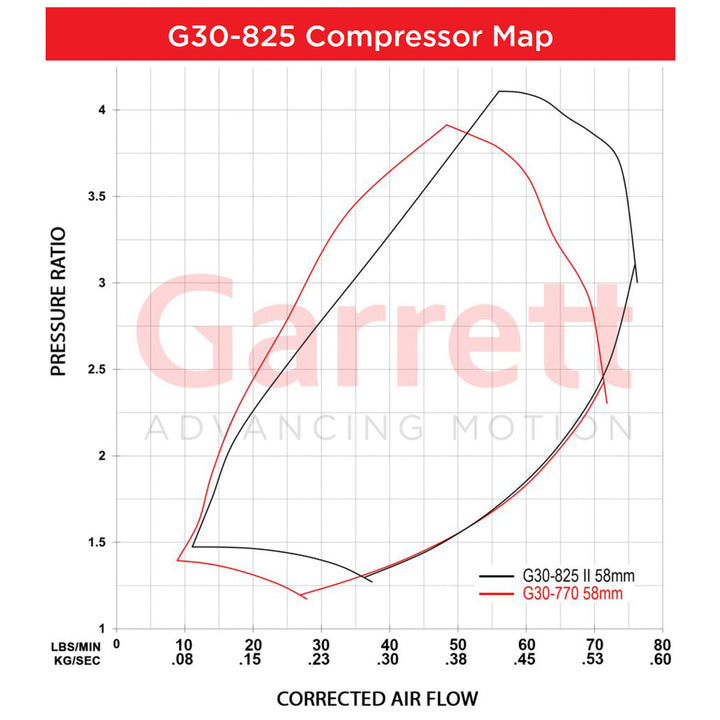

Compressor Specs

  • Inducer: 58mm
  • Exducer: 71mm
  • Trim: 65
  • A/R: 0.72

Turbine Specs (Varies by Selection)

  • Inducer: 60mm
  • Exducer: 55mm
  • Trim: 84
  • A/R Options: 0.83 / 1.01 (select from dropdown)

Fitment & Installation

The Garrett G30-825 Turbocharger is designed for performance-focused builds, with multiple A/R options to fine-tune power delivery:

  • 0.83 A/R: Best for quick spool and responsive street performance.
  • 1.01 A/R: Optimized for top-end power in high-boost race applications.

Why Choose the Garrett G-Series II G30-825?

For enthusiasts seeking extreme horsepower with faster spool and greater efficiency, the Garrett G30-825 is a top-tier choice. Whether you're building a street monster or a track-dominating machine, this turbocharger delivers cutting-edge performance.

🔧 Select your preferred A/R from the dropdown and take your build to the next level!

📄 Garrett G-Series II Product Flyer »
